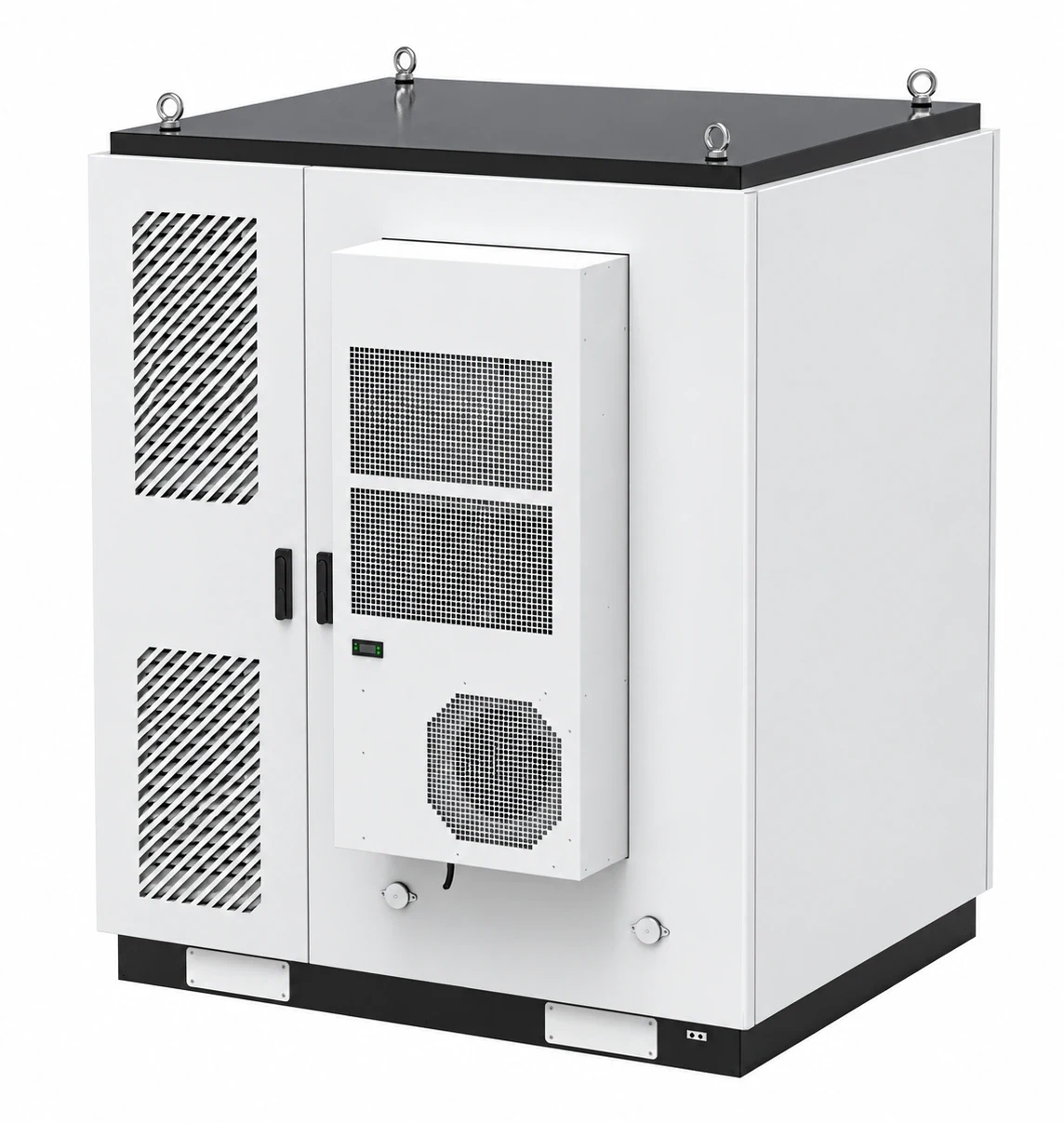

Outdoor air-cooled DC energy storage for industrial parks, villa residences, farms and power stations.
The brochure highlights installation, operating life, safety, remote support, flexible configuration and seamless switching.

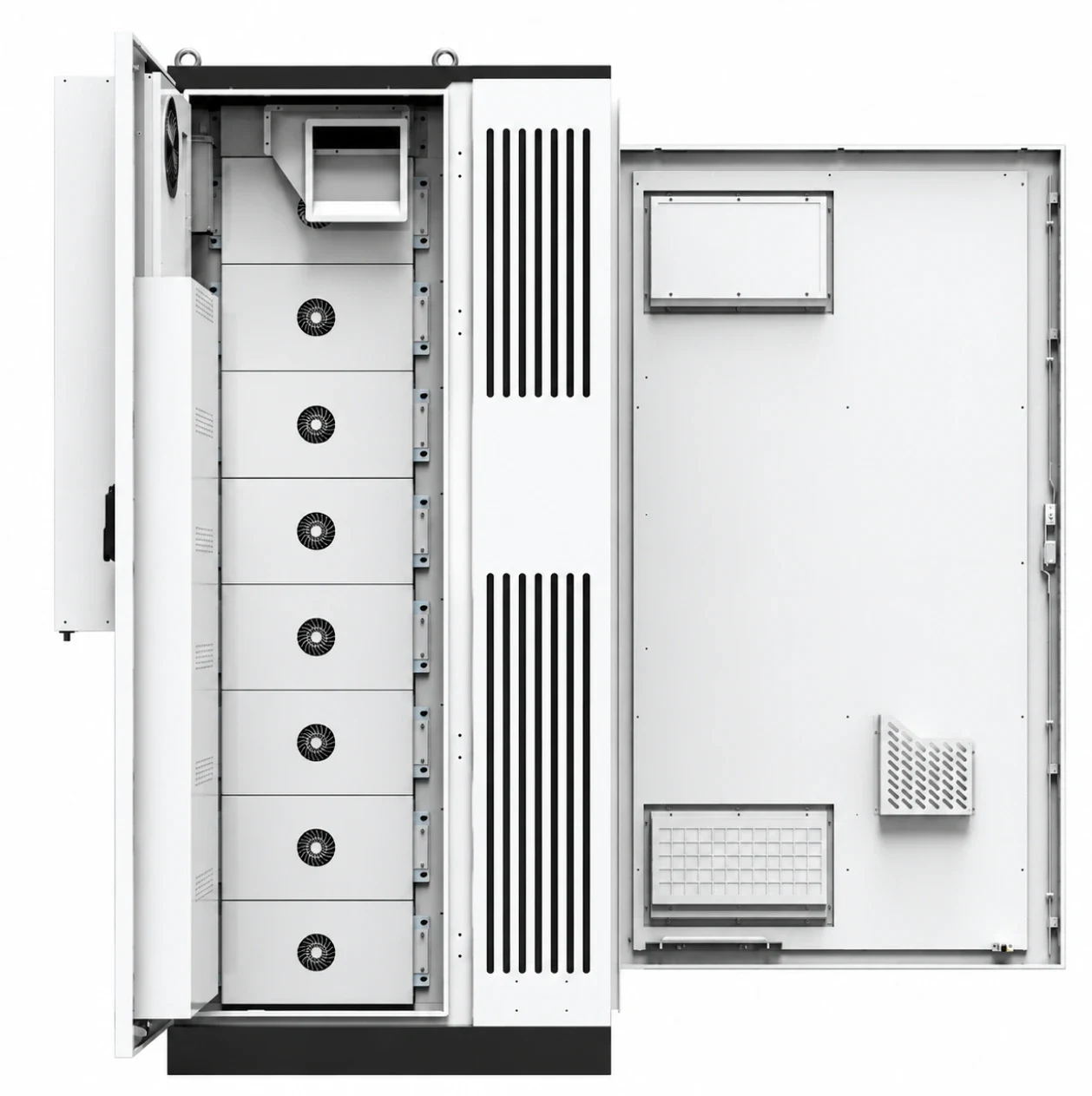

Highly integrated and convenient for transportation, operation and maintenance. Fully pre-assembled, with no on-site installation of battery modules, and functional debugging for multiple scenarios.
Intelligent air cooling improves efficiency and battery life. The battery cells operate in an environmentally friendly manner to support charge and discharge power, while the smart cooling system prevents heat accumulation.
Multi-level protection for AC and DC. The system can quickly disconnect during anomalies, with fire detection and protection at PACK and cluster levels.
Intelligent remote support for strategy adjustments, configuration and data viewing, with real-time status monitoring, fault logging and battery performance recording.
Supports 0.5C charging/discharging, up to 4 units in parallel on the DC side and configurable AC-side parallel operation depending on the selected hybrid inverter.
Grid-off-grid and off-grid-grid switching with a switching time of less than 20ms, with compatibility determined by the selected hybrid inverter.
Values below are transcribed from the supplied one-page English brochure and retained as presented there.
| Parameter | 160kWh | 120kWh | 61.44kWh |
|---|---|---|---|
| Cells type | LiFePO4 Lithium Iron Phosphate | ||
| Cell specification | 3.2V 314Ah | 3.2V 314Ah | 3.2V 100Ah |
| Model of battery | 20S1P (20.096kWh) | 20S1P (20.096kWh) | 24S1P (7.68kWh) |
| System of battery | 160S1P | 120S1P / 140S1P | 192S1P / 216S1P / 240S1P |
| Battery capacity | 160kWh | 120kWh / 140kWh | 61.44kWh / 69.72kWh / 76.8kWh |
| Max. power | 80kW | 60kW / 70kW | 30kW / 35kW / 35kW |
| Max. current | 157A | 157A | 50A |
| Battery rated voltage | 512V (448V–576V) | 384V (336V–432V) / 448V (392V–504V) | 614.4V (537.6V–691.2V) / 691.2V (604.8V–777.6V) / 768V (672V–864V) |
| General Data | |||
| Cabinet size (W × D × H) | 1050 × 1330 × 2274mm (excluding lifting lugs) | 1180 × 1050 × 2033mm | |
| Weight | <2.8T | ||
| Max. cycle efficiency | 90%–99% | ||
| IP rating | Optional (IP54 / IP55) | ||
| Auxiliary power supply | Self-powered, externally powered | ||
| Corrosion resistance rating | Optional (C3 / C4 / C5) | ||
| Operating humidity range | 0%–100% (non-condensing) | ||
| Operating temperature range | −30°C–50°C (>45°C derating) | ||
| Max. operation altitude | >3000m | ||
| Battery cabinet cooling method | Air Cooling | ||
| Fire safety configuration | Smoke detector, heat detector, gas-based fire extinguishing system, pressure relief valve, PACK-level fire protection, cluster-level fire protection, water-based fire protection, automatic pressure relief | ||
| Communication | RS485, CAN | ||
| Communication protocol | ModbusTCP | ||
| System protection | Water ingress protection, fire protection, access control alarm | ||
Note: Options for solutions and spare parts are available. For details, please consult our sales team for further communication.
The brochure lists Deye hybrid inverter families and notes that compatibility with other hybrid inverters should be confirmed with the business team.
SUN-60/70/75/80K-SG02HP3-EU-EM4 and SUN-29.9K-SG01HP3-EU-EM3 are shown in the supplied brochure, together with other listed SUN series models.
Contact the EYUN business team to confirm whether the selected inverter agreement matches the battery system.
Send your application, target capacity, inverter model, quantity and destination. EYUN can review the configuration and prepare a factory quotation.
