Products / 51.2V 314Ah 16.5kWh Outdoor Energy Storage Battery
51.2V 314Ah 16.5kWh Outdoor Energy Storage Battery51.2V 314Ah 16.5kWh Outdoor Energy Storage Battery51.2V 314Ah 16.5kWh Outdoor Energy Storage Battery51.2V 314Ah 16.5kWh Outdoor Energy Storage Battery51.2V 314Ah 16.5kWh Outdoor Energy Storage Battery
MODEL · EYUN-51-2V-314AH-16-5KWH-OUTDOOR-IP65-ENERGY
Energy Storage Batteries
Factory-direct energy product

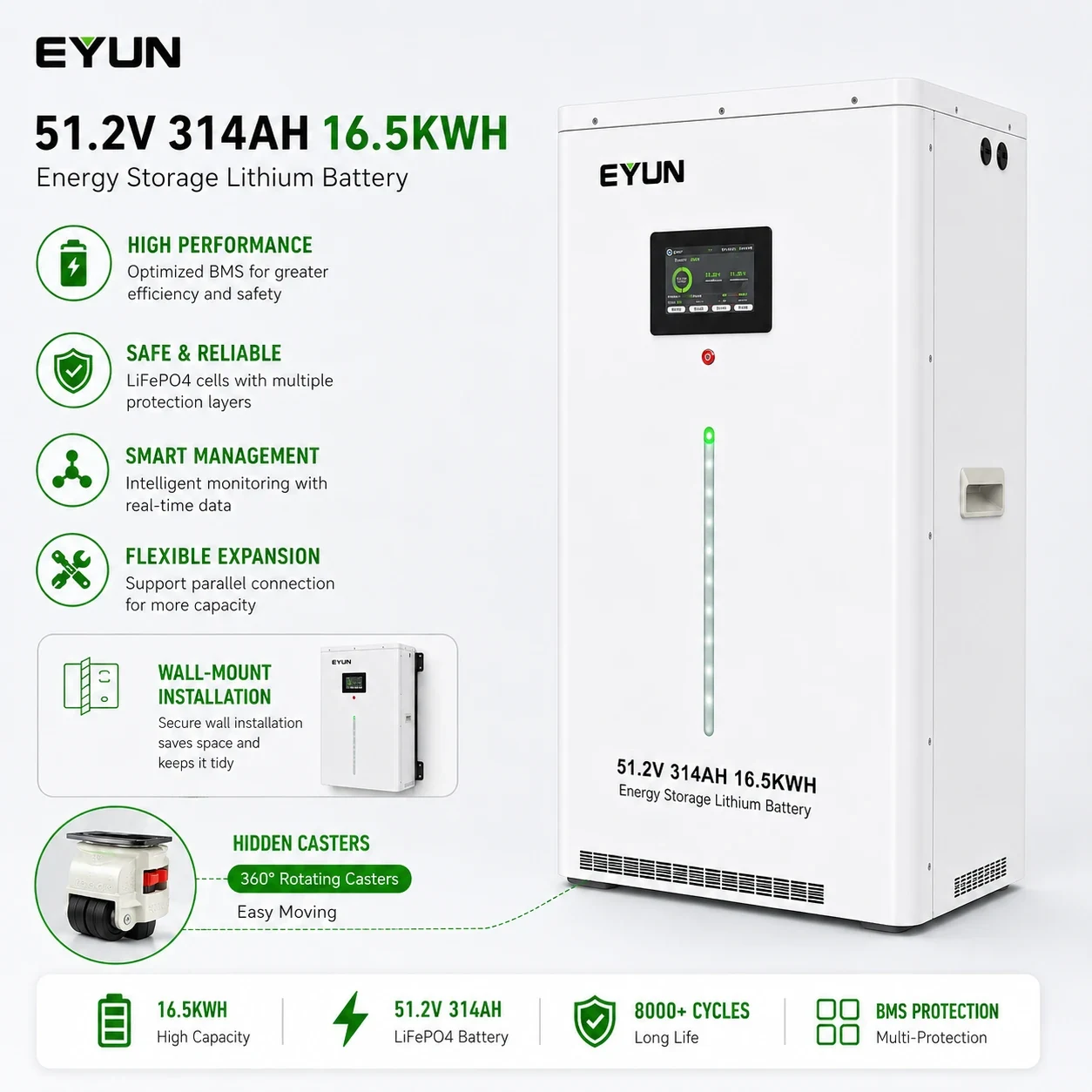

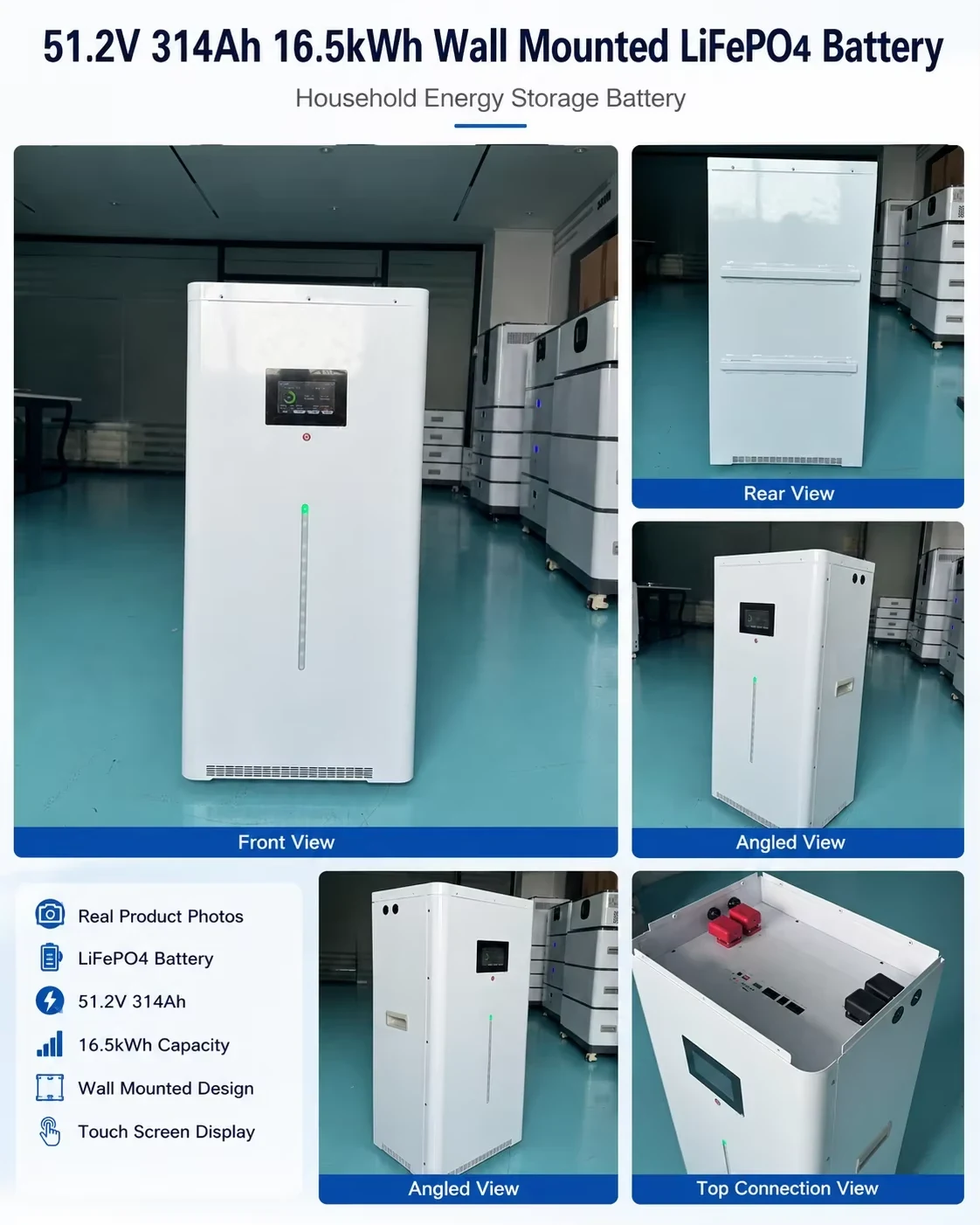

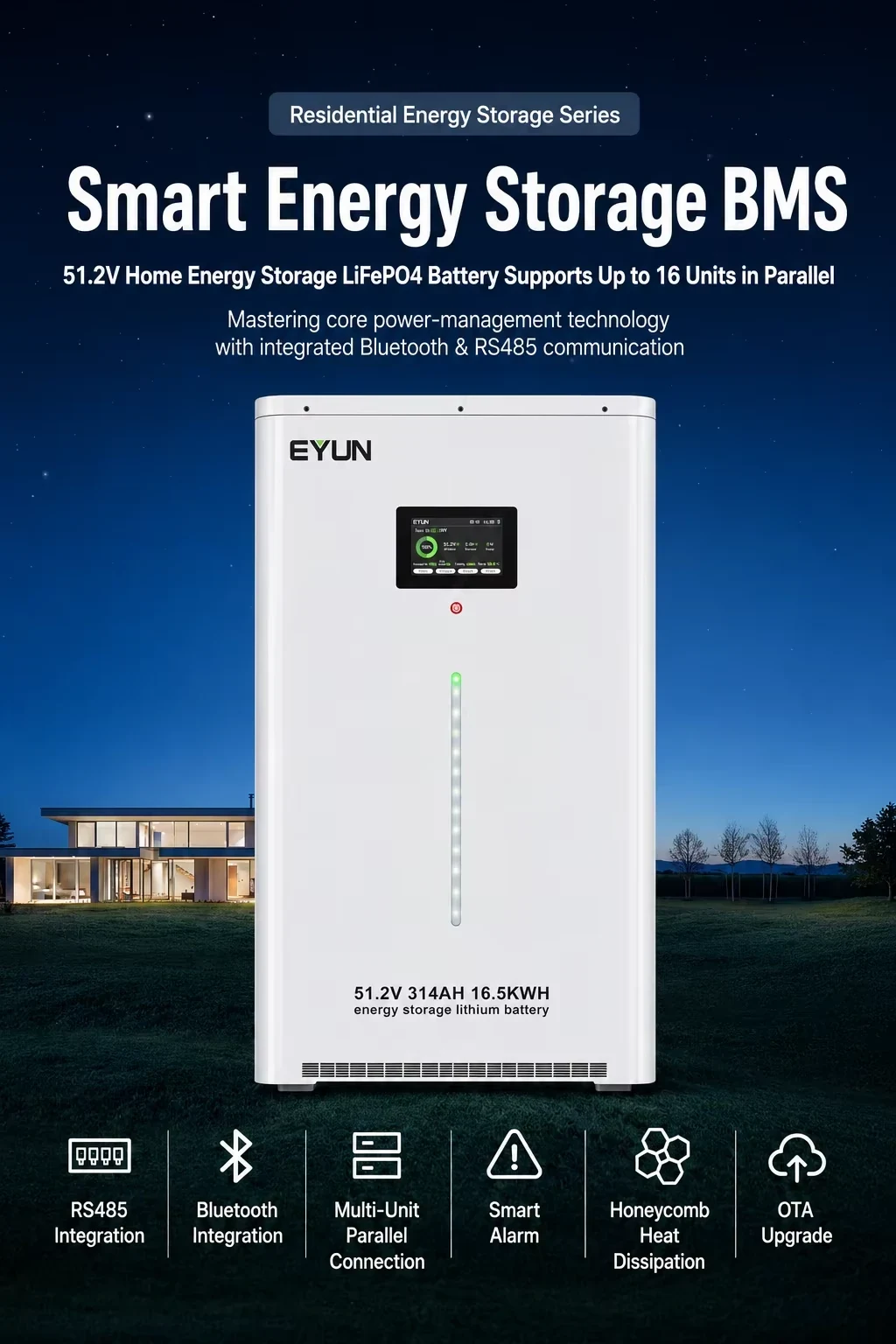

51.2V 314Ah 16.5kWh Outdoor Energy Storage Battery

Modular stackable energy storage architecture presented in the EYUN electronic album.

CHEMISTRYLiFePO4
SUPPLYFactory Direct
CELL OPTIONEVE A-grade
PROJECTOEM / ODM
Request Factory QuoteView SpecificationsSubmit Order
✓ BMS configurable✓ Enclosure configurable✓ Communication options✓ Outdoor IP65 enclosure
02 / Technical specifications

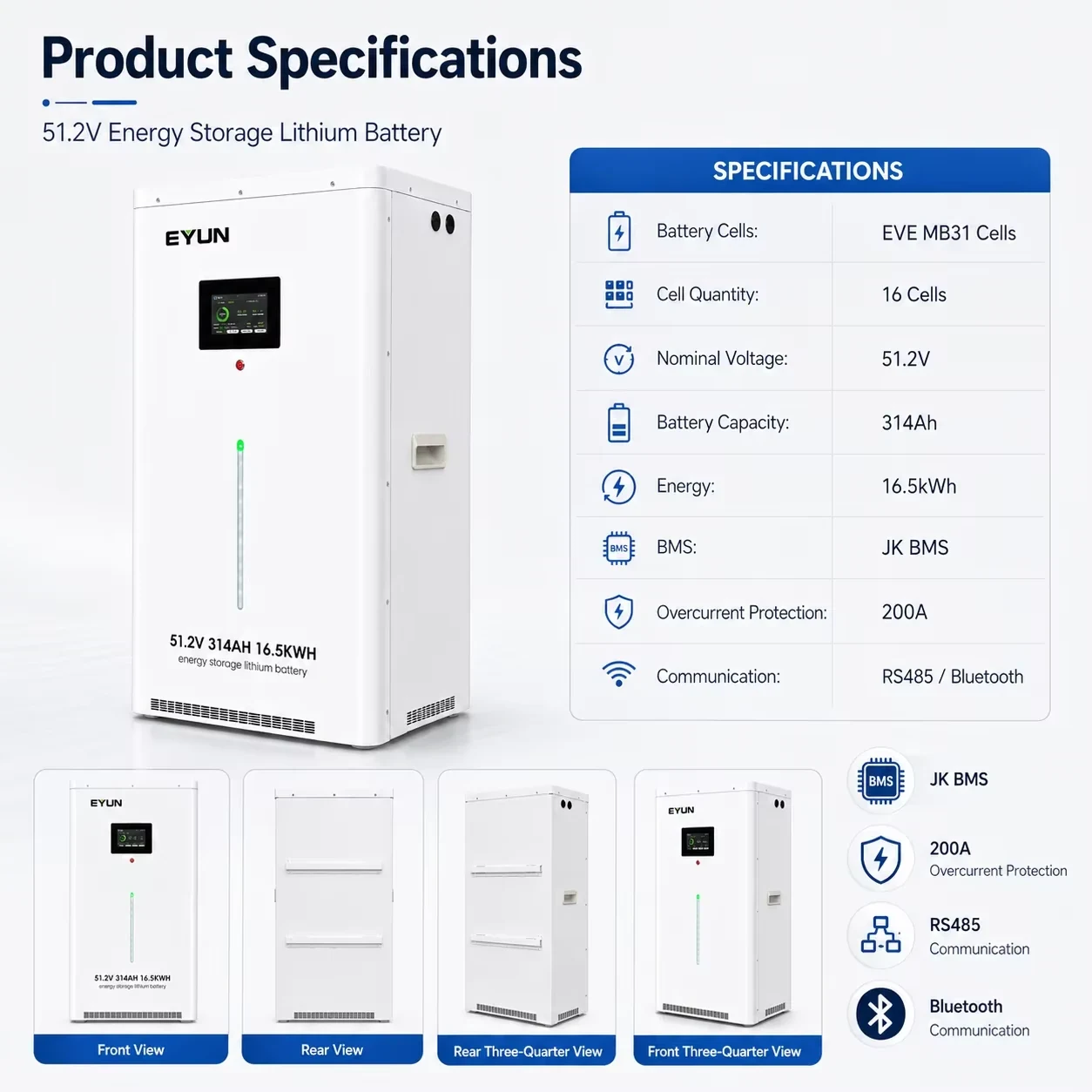

Technical specifications

Review the product parameters below. Contact our team to confirm your required configuration.

SpecificationValue
Nominal Voltage51.2 V
Rated Capacity314 Ah
Nominal Energy16.5 kWh
ChemistryLiFePO4

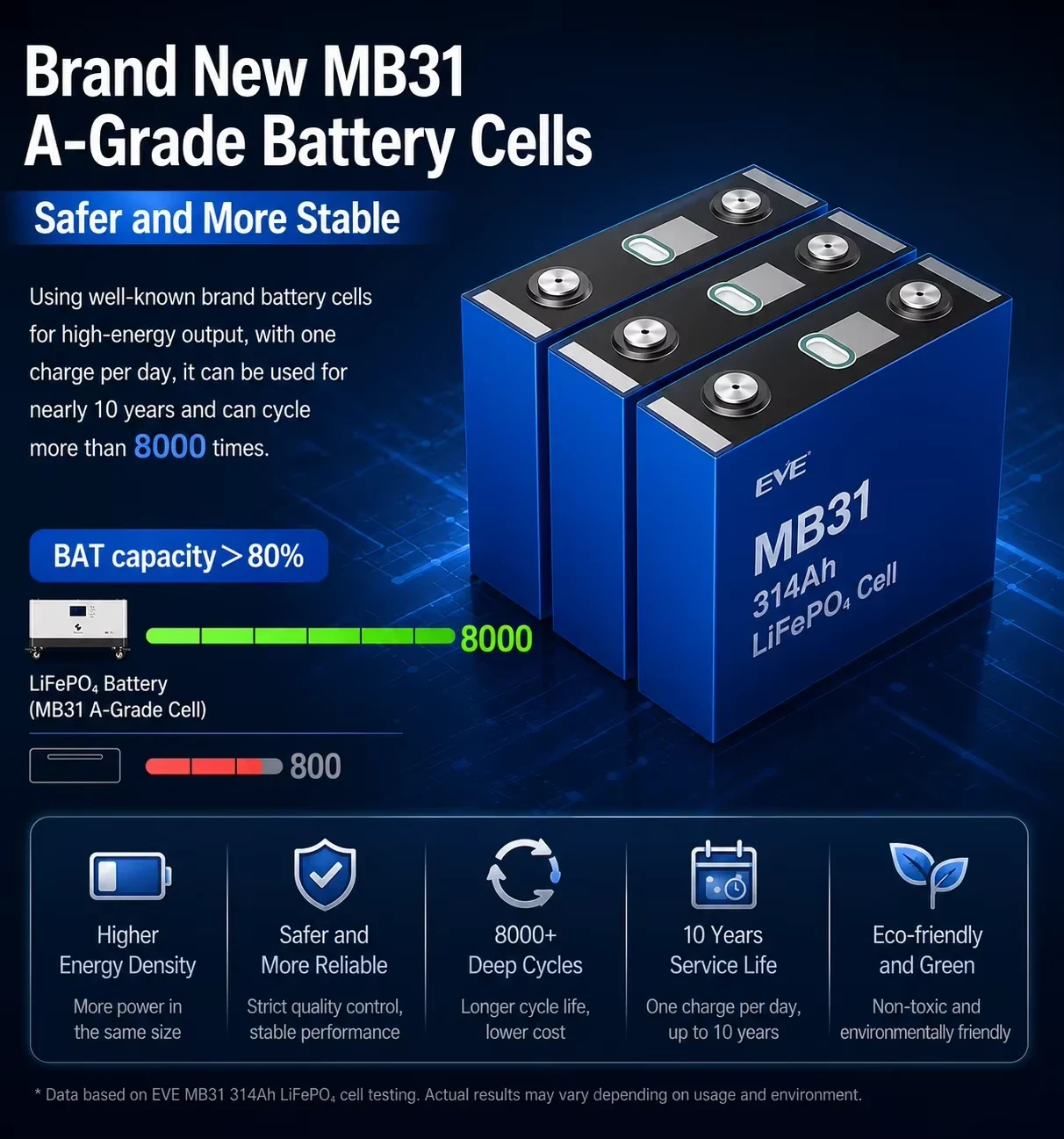

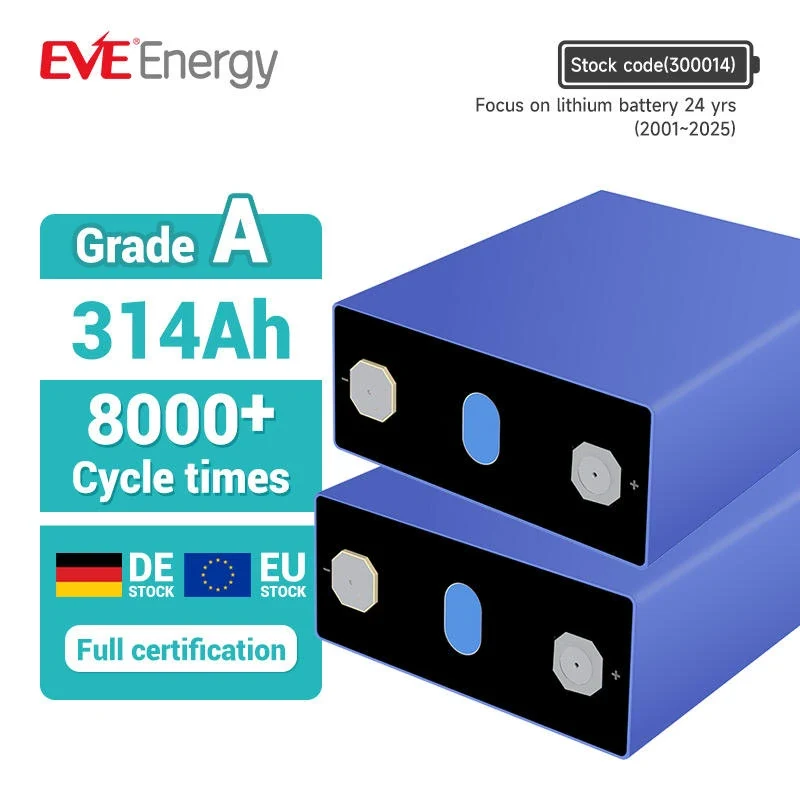

Cell OptionEVE MB31 314Ah

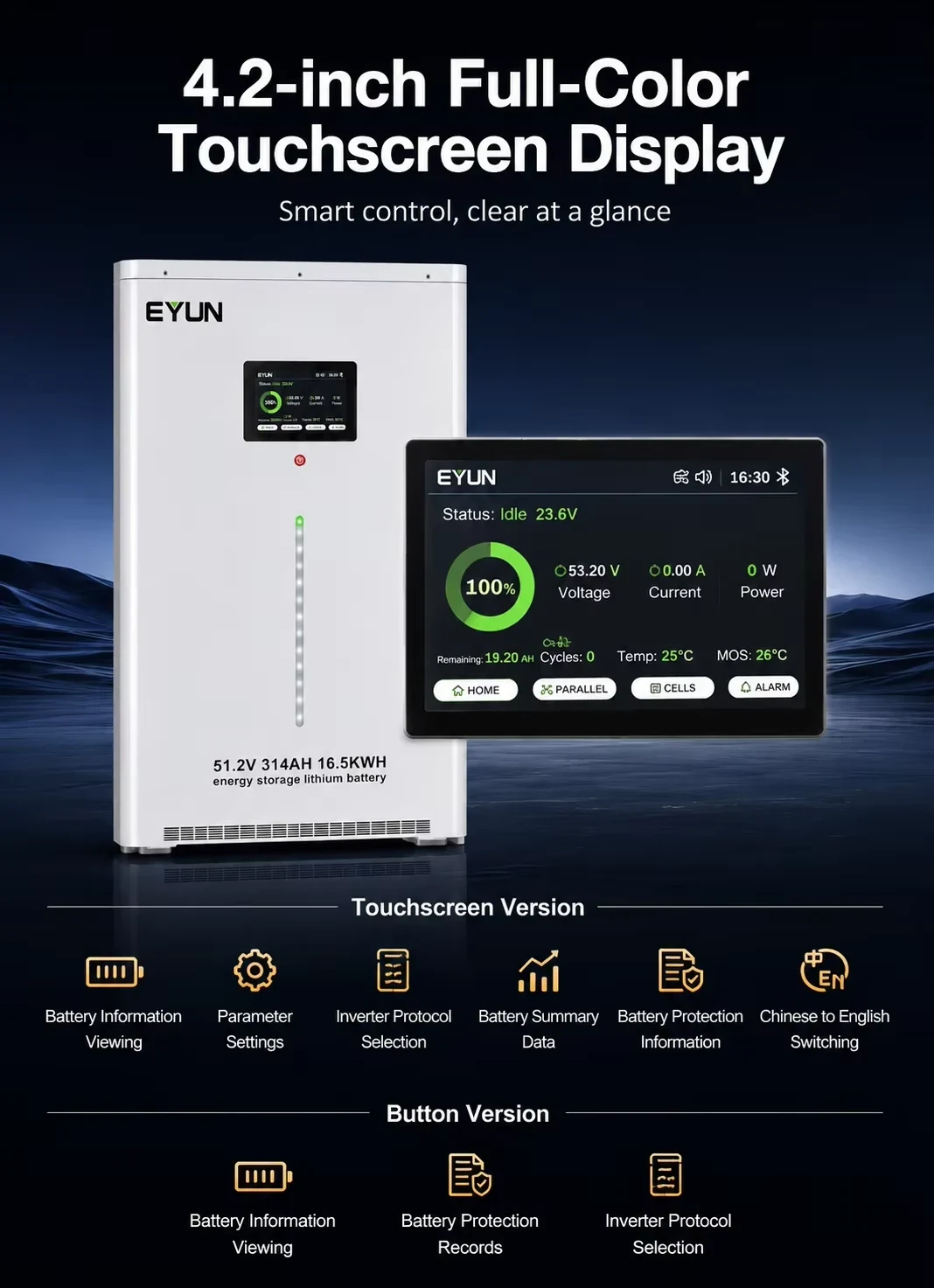

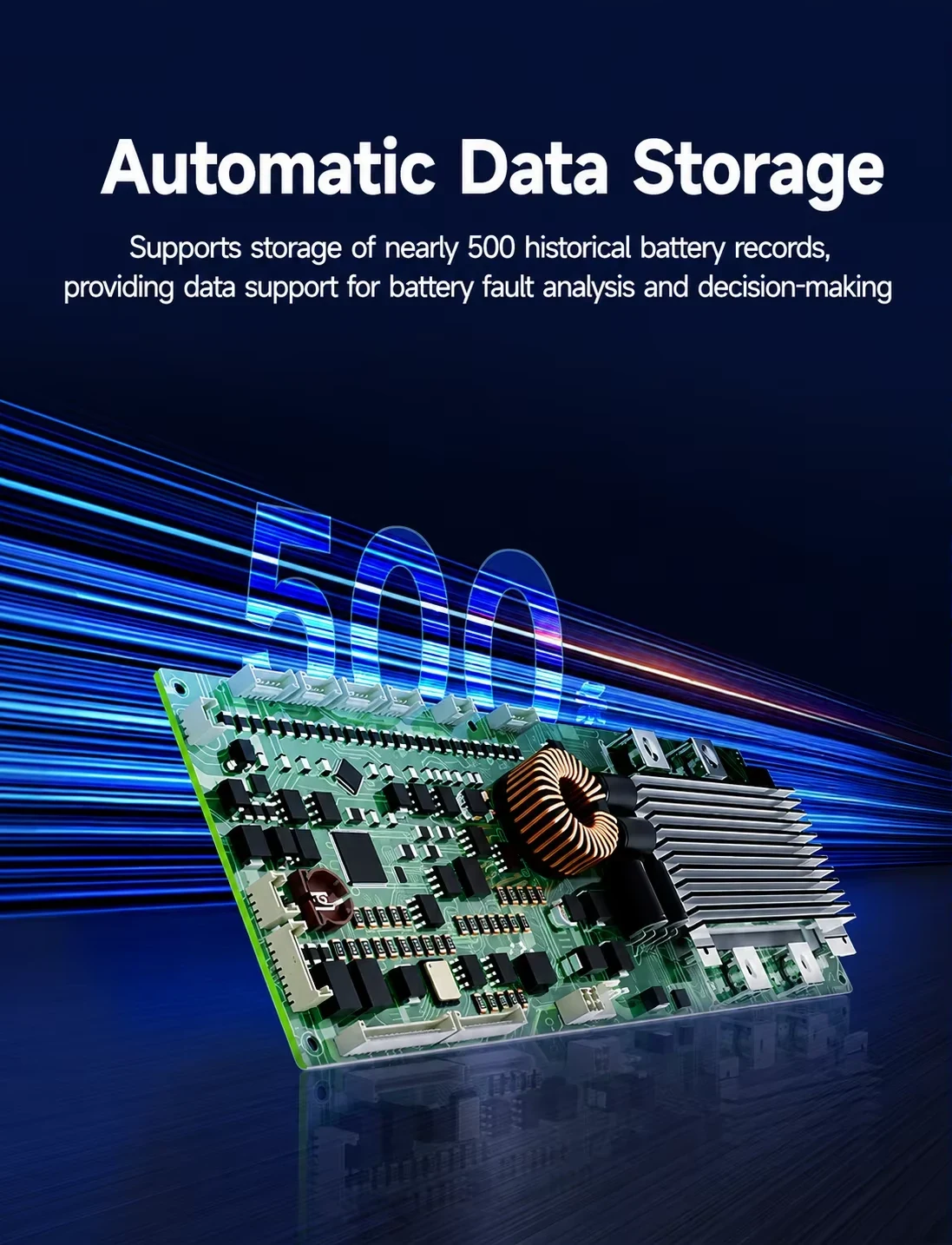

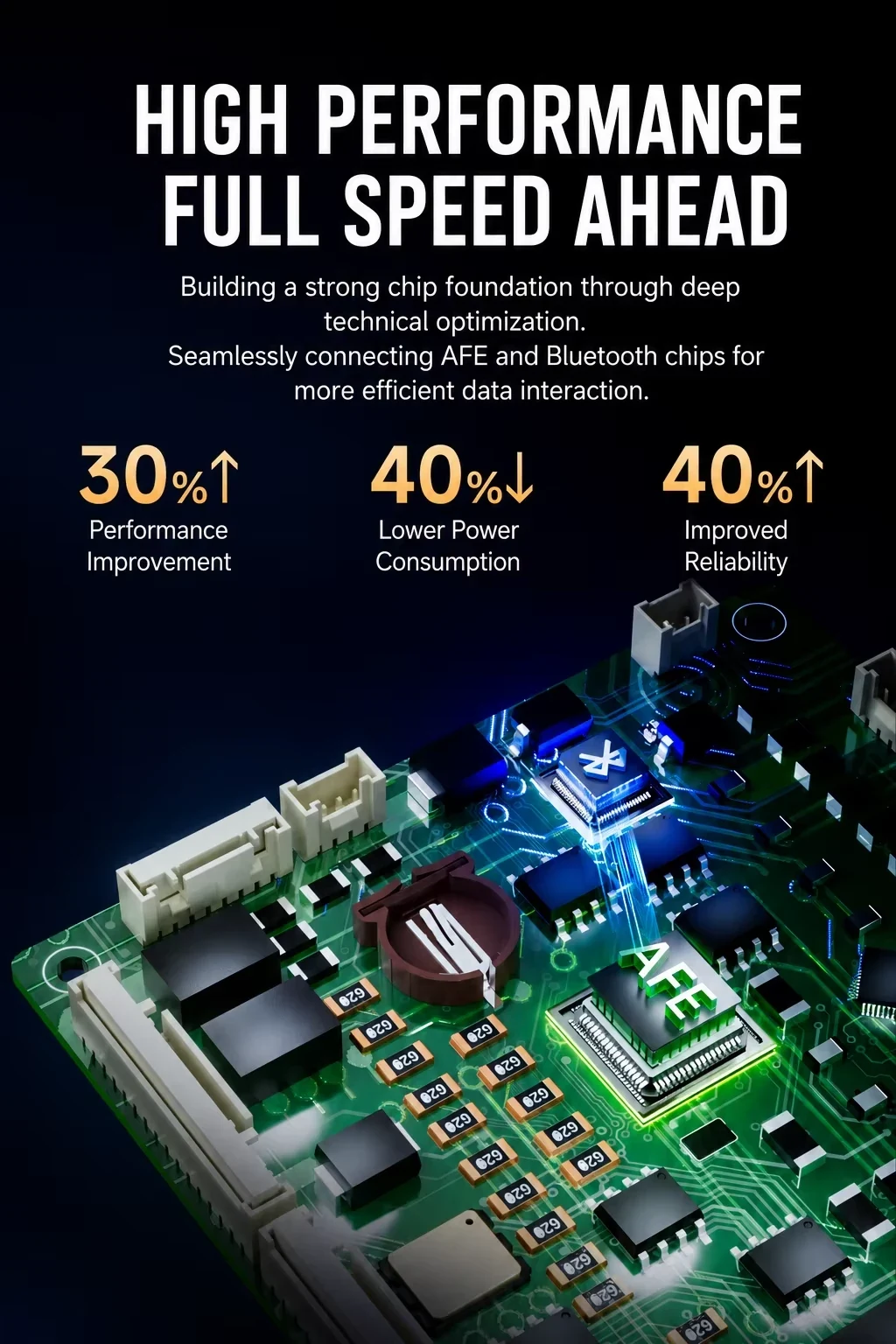

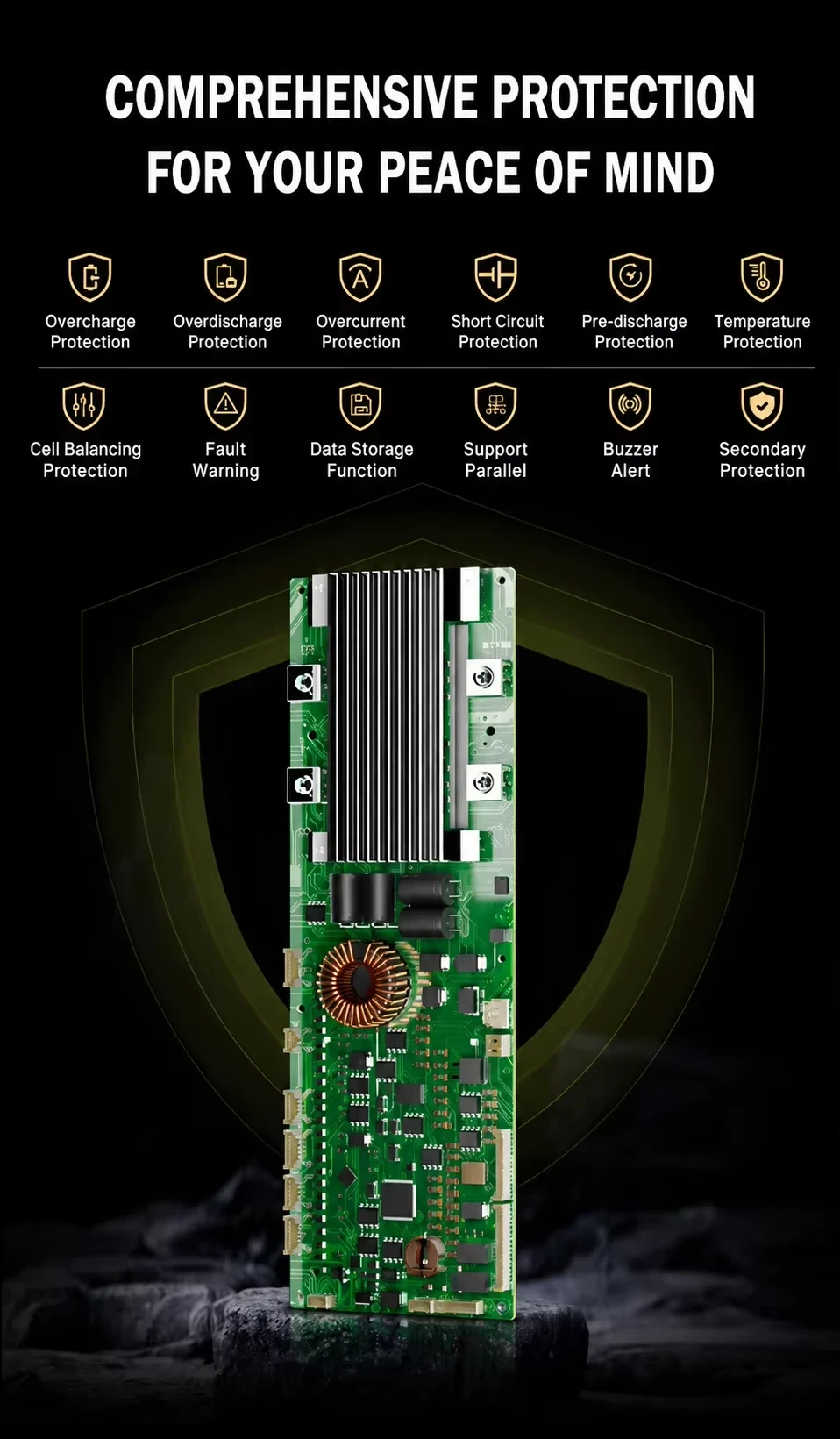

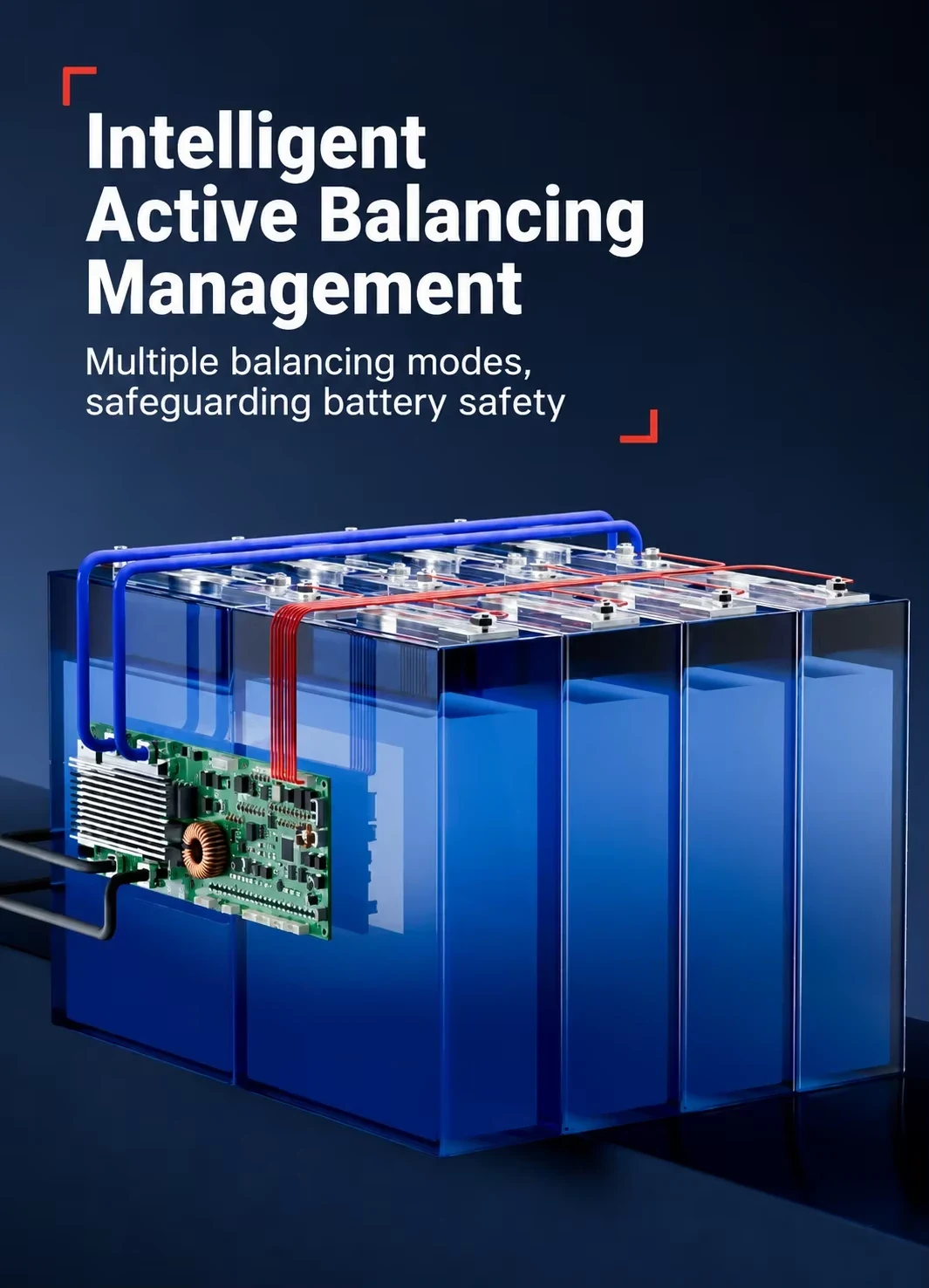

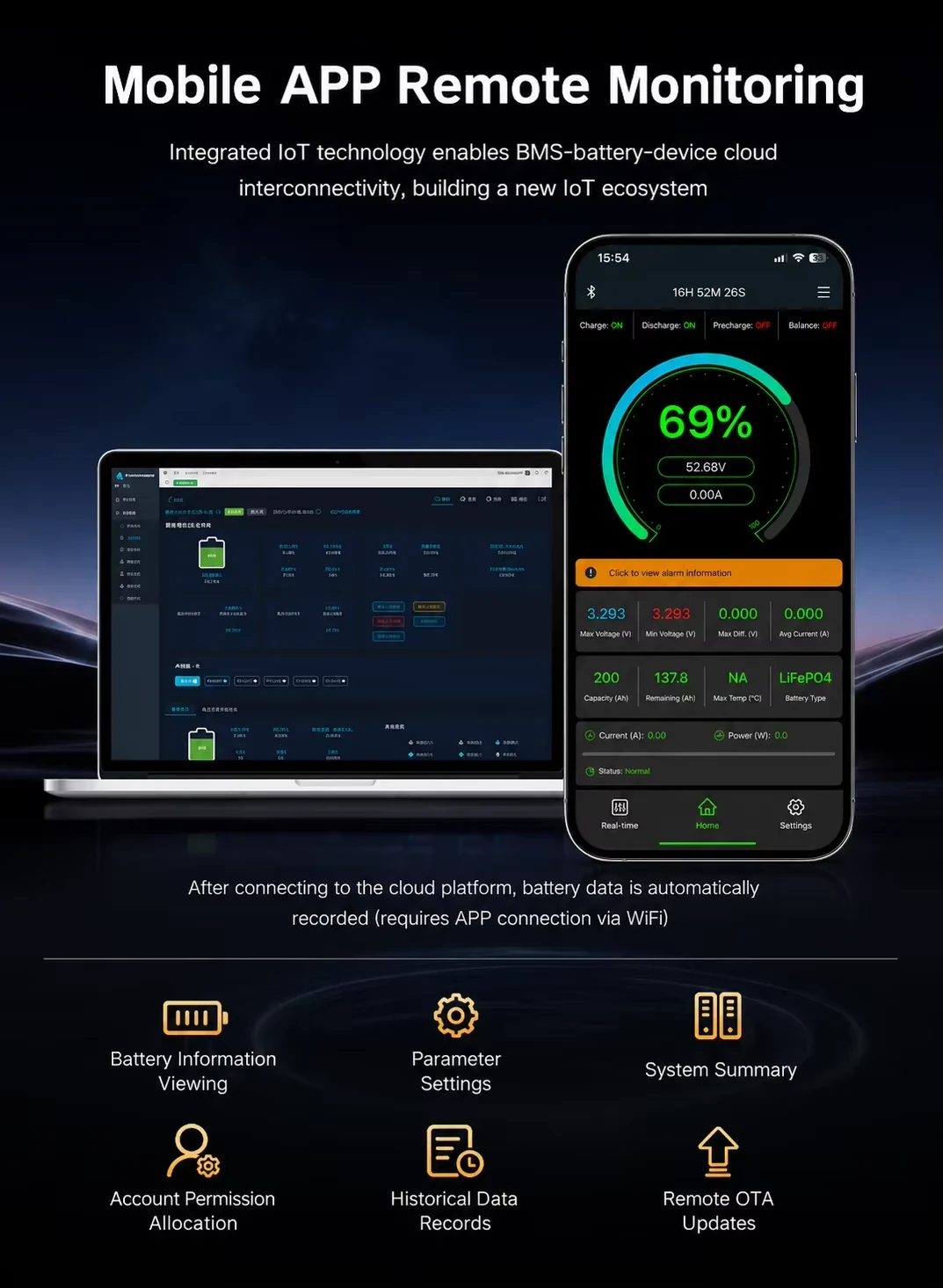

BMSJK Smart BMS, 200A, Bluetooth Monitoring & Active Balancing
CommunicationCAN / RS485
EnclosureMetal Enclosure for Energy Storage

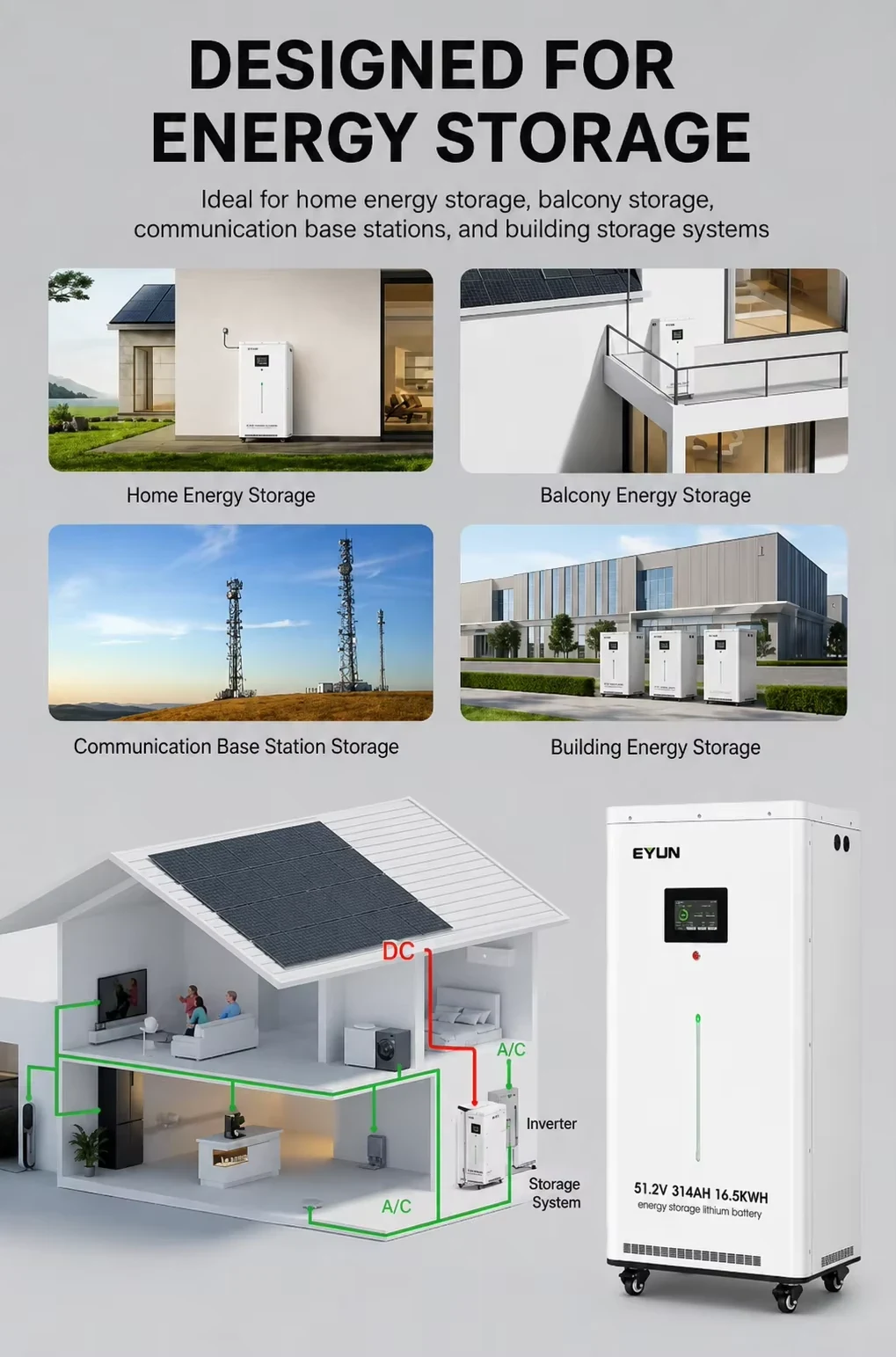

ApplicationSolar Energy Storage / Backup Power
Cell Configuration16S1P
Maximum Charge Voltage58.4 V
Discharge Cut-Off Voltage43.8 V
Charge Current200 A
Operating Discharge Current180–200 A
Charging MethodCC/CV

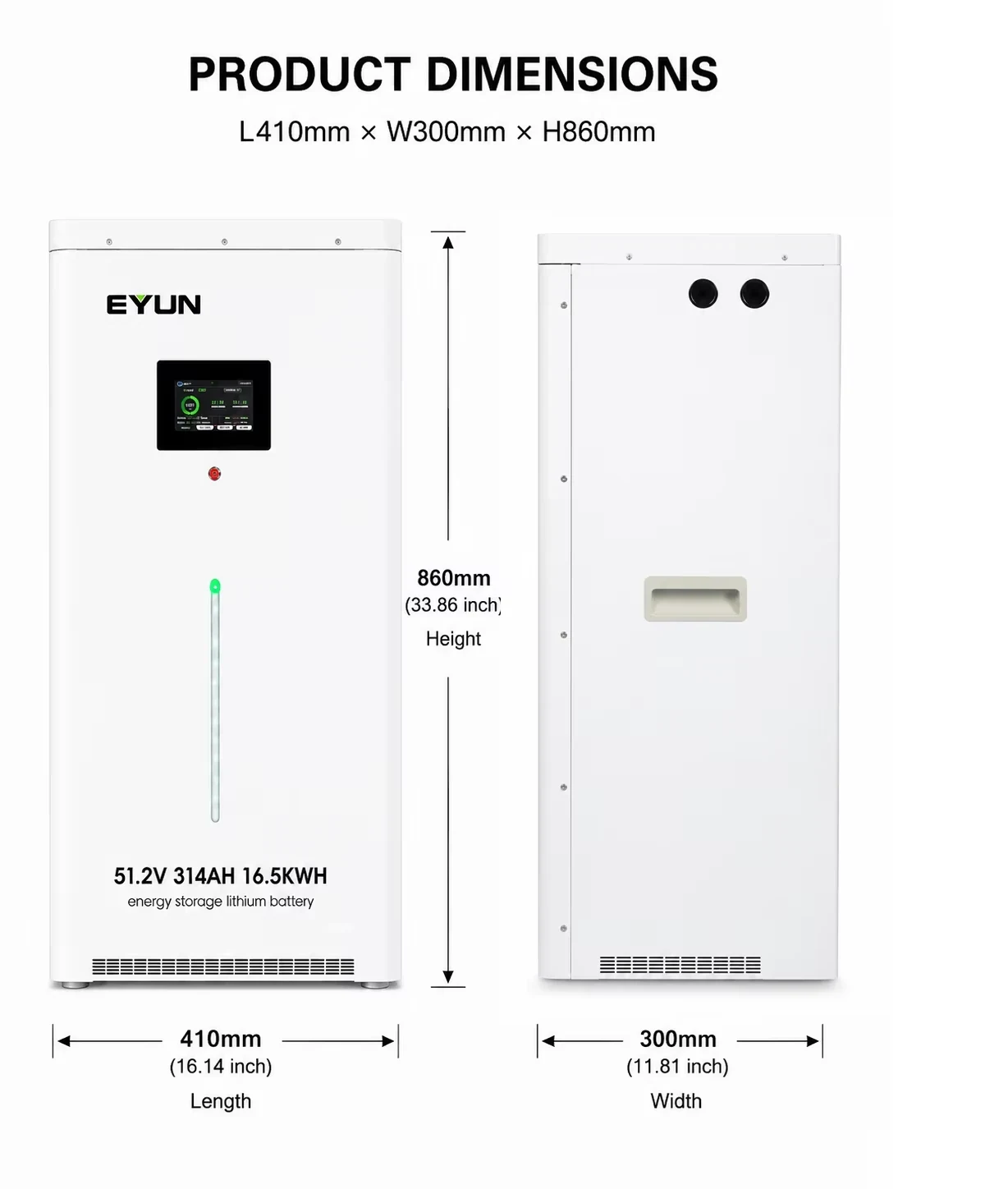

Dimensions410 × 860 × 300 mm
Weight145 kg
