Products / EYUN 25.6V 314Ah 8.04kWh Wall-Mounted LiFePO4 Solar Energy Storage Battery with Smart BMS

MODEL · EYUN-25.6V-314AH-WALL-MOUNTED

Energy Storage Batteries

Factory-direct energy product

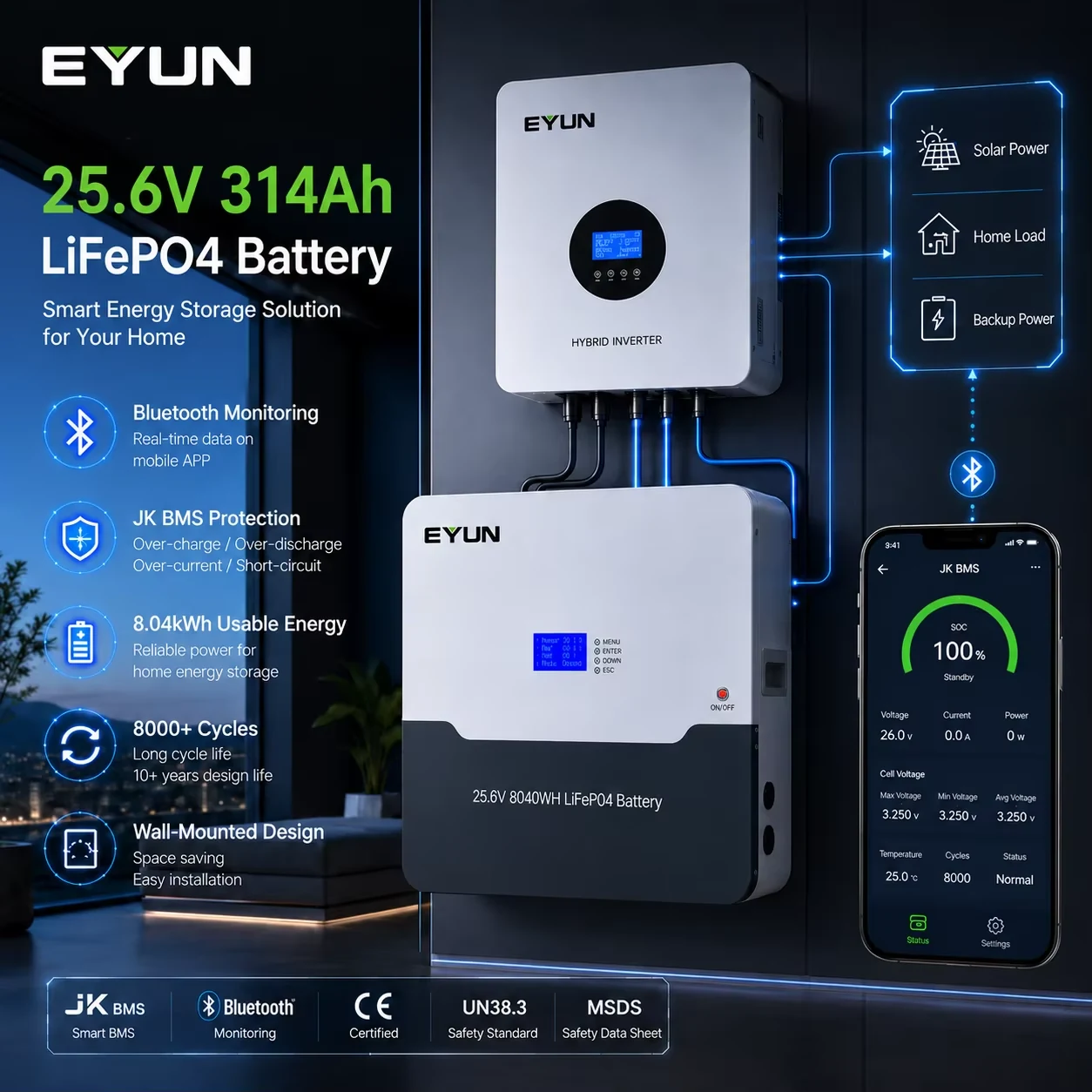

EYUN 25.6V 314Ah 8.04kWh Wall-Mounted LiFePO4 Solar Energy Storage Battery with Smart BMS

Name: EYUN 25.6V 314Ah 8.04kWh Wall-Mounted LiFePO4 Solar Energy Storage Battery with Smart BMS
Brand: EYUN
SKU: EYUN-25.6V-314AH-WALL-MOUNTED

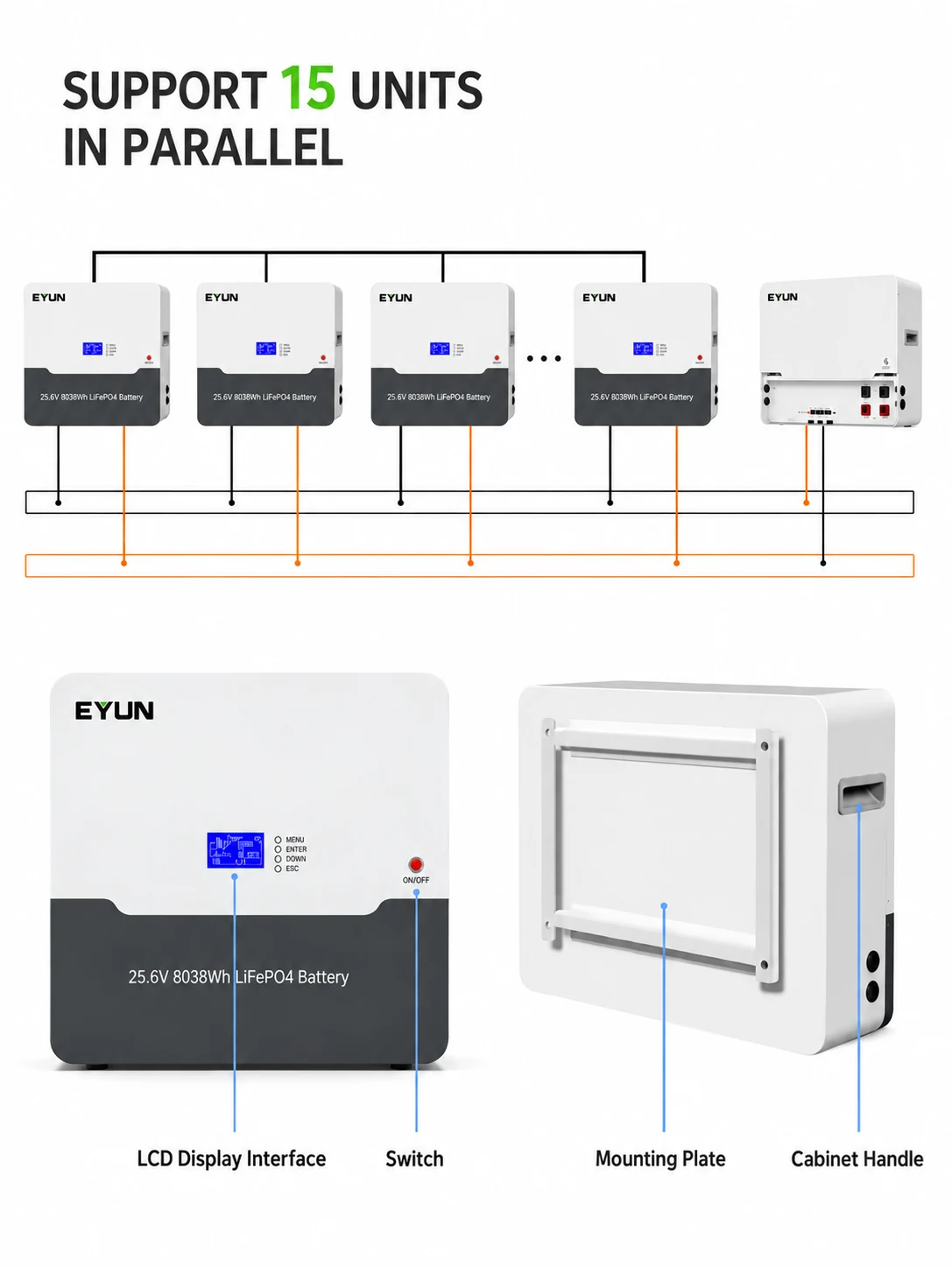

EYUN 25.6V 314Ah wall-mounted LiFePO4 battery delivers 8.04kWh of energy for solar storage, off-grid systems and home backup. Featuring smart BMS protection, RS485/CAN communication, IP55 protection and support for up to 16 units in parallel, it offers a flexible energy storage solution for residential applications.

ENERGY8.04 kWh

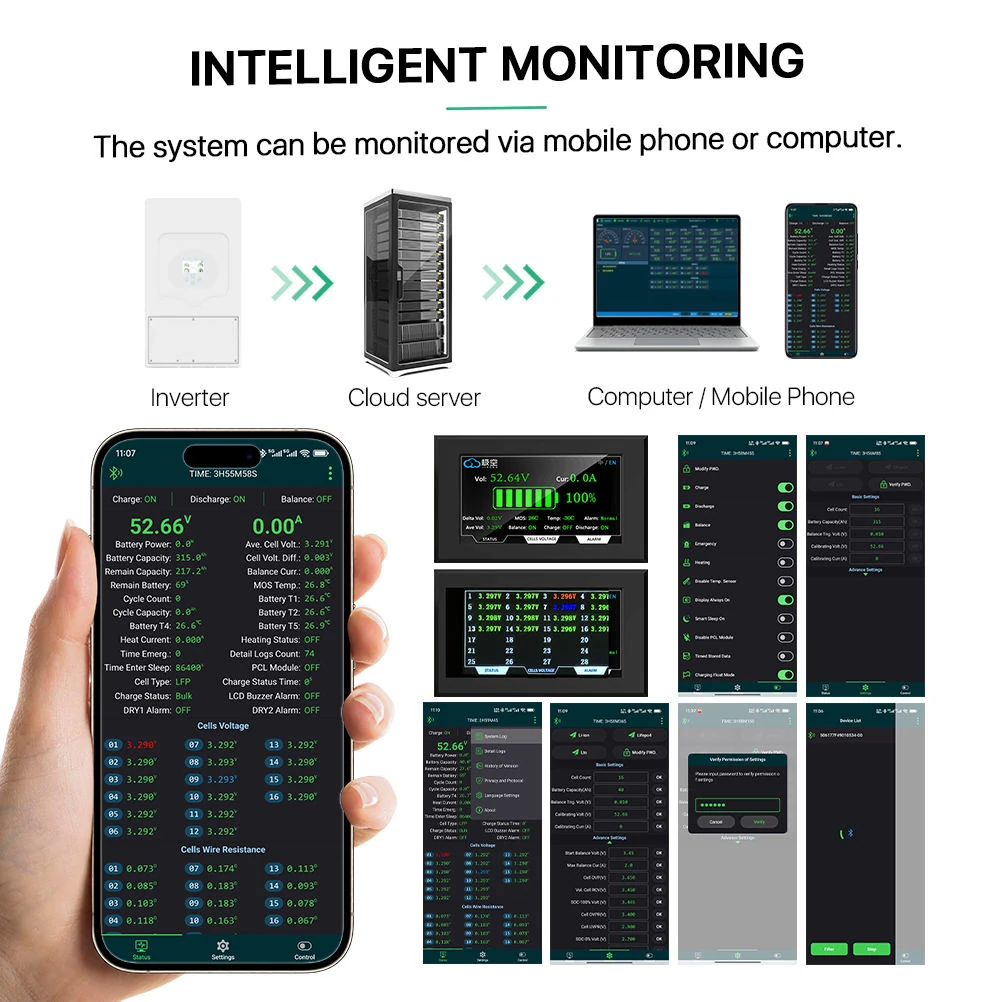

SMART BMS200A

PROTECTIONIP55

COMMUNICATIONRS485 / CAN

Request Factory Quote View Specifications Submit Order

✓ BMS configurable✓ Enclosure configurable✓ Communication options

02 / Technical specifications

Technical specifications

Review the product parameters below. Contact our team to confirm your required configuration.

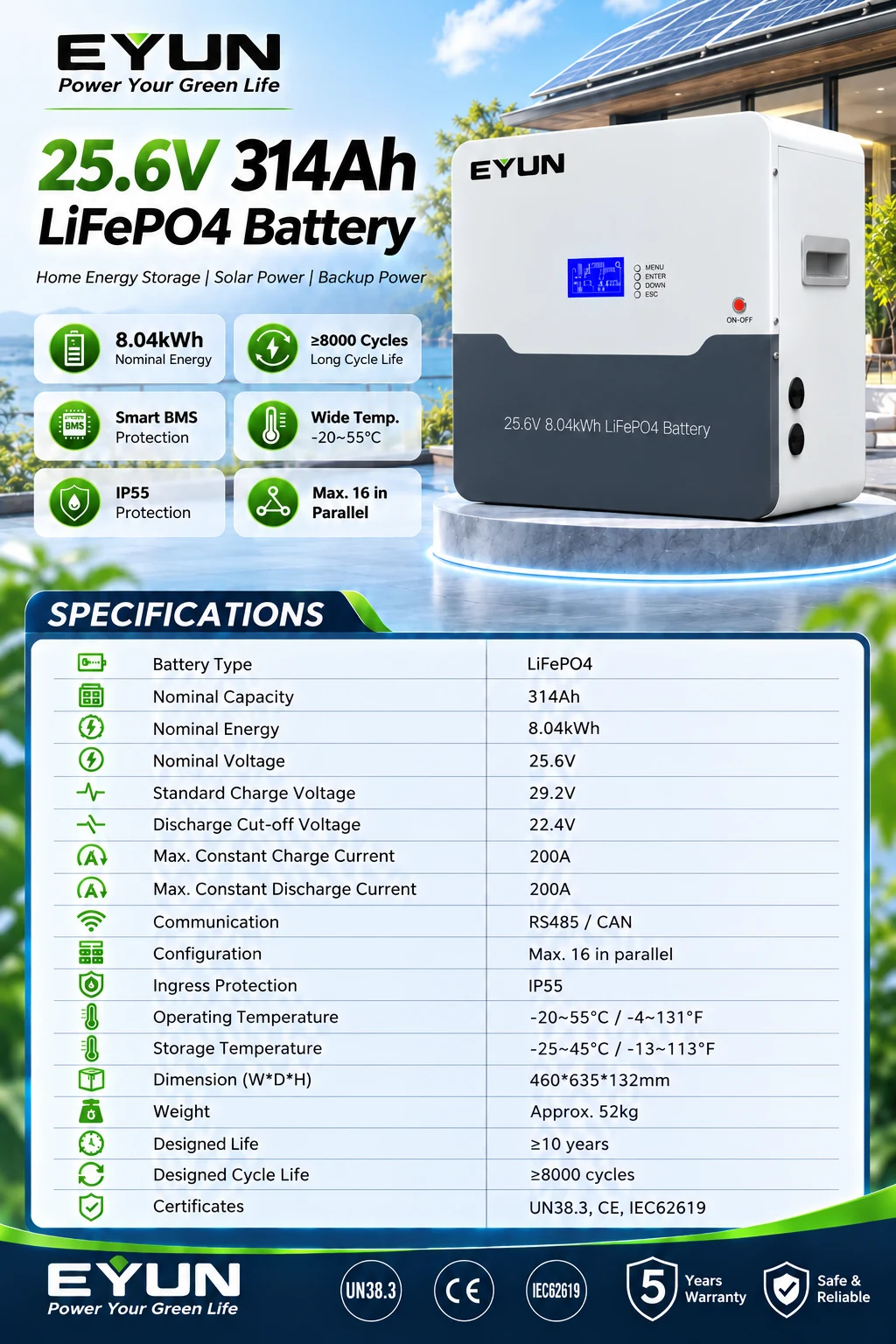

Specification	Value
Nominal Voltage	25.6 V
Rated Capacity	314Ah
Nominal Energy	8.04 kWh
Chemistry	LiFePO4

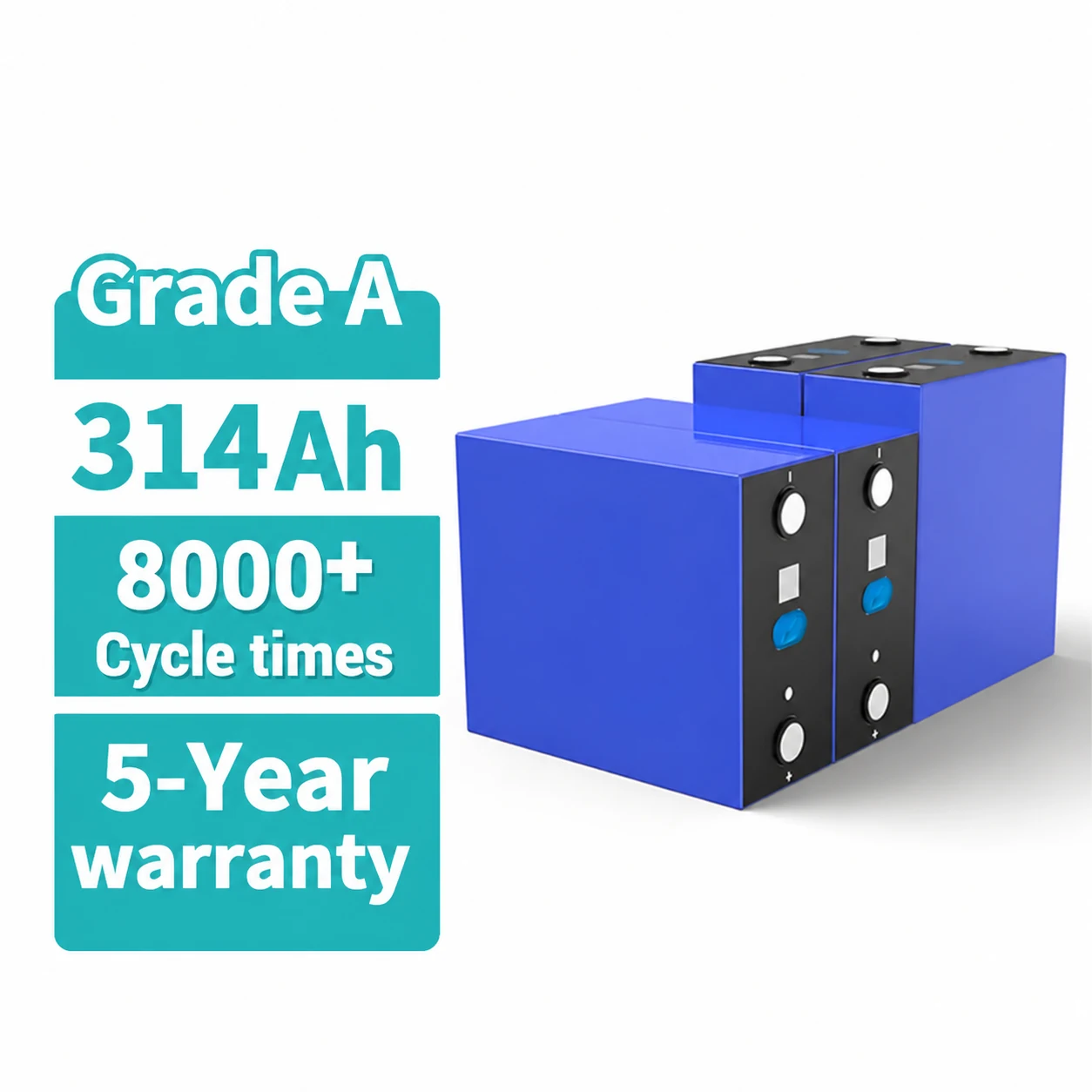

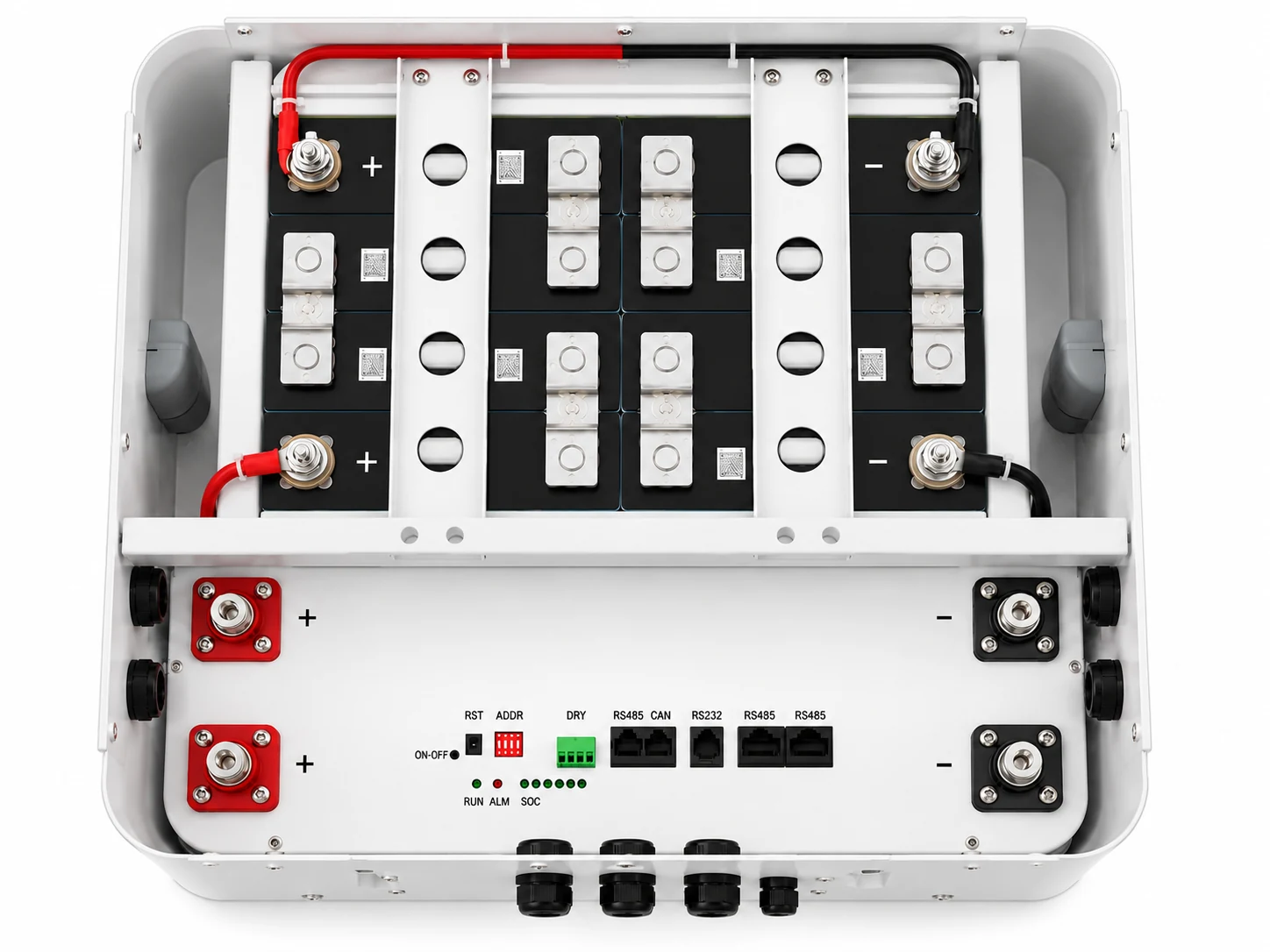

Cell Option	EVE MB31 314Ah Cells

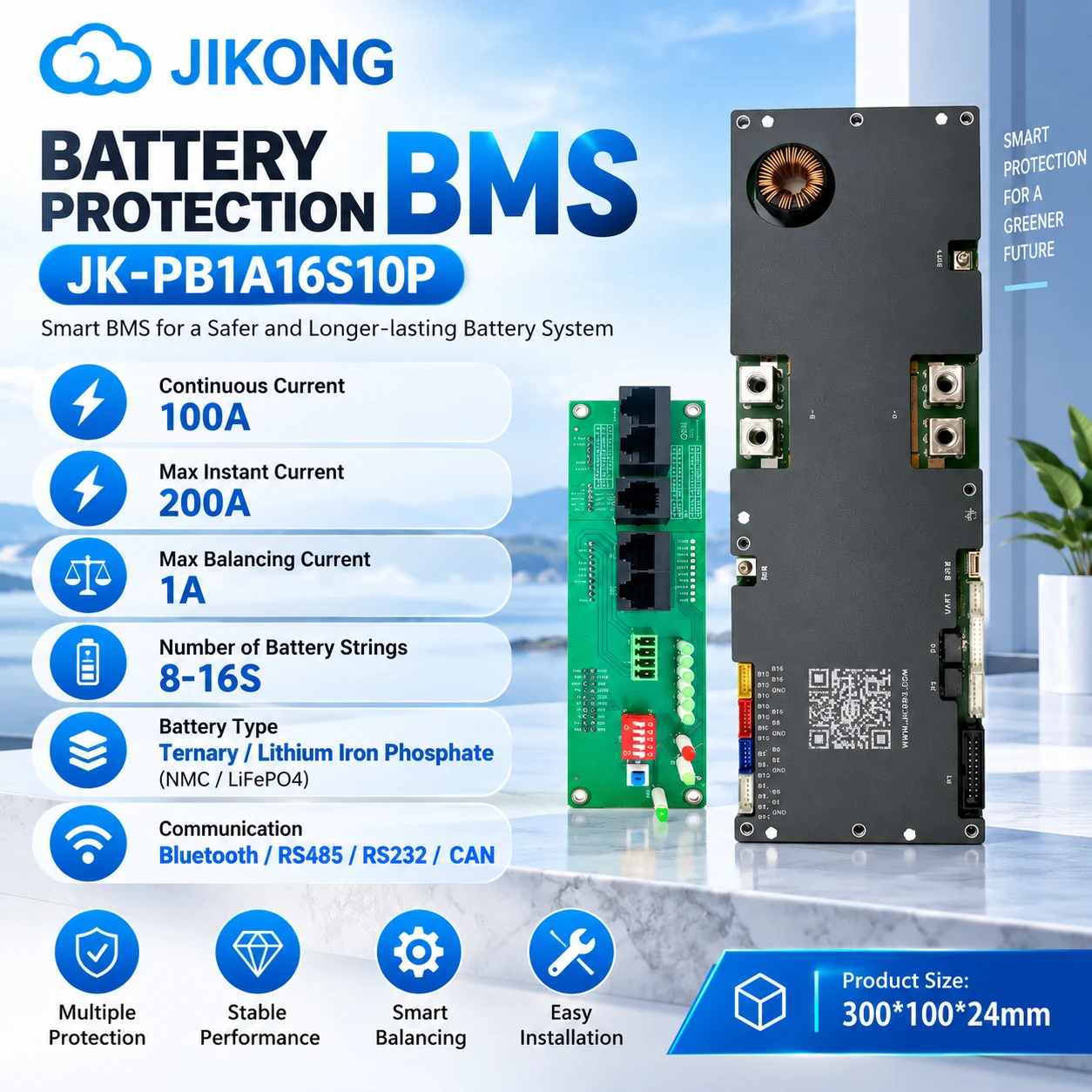

BMS	Smart BMS, 200A Max. Continuous Charge/Discharge
Communication	RS485 / CAN

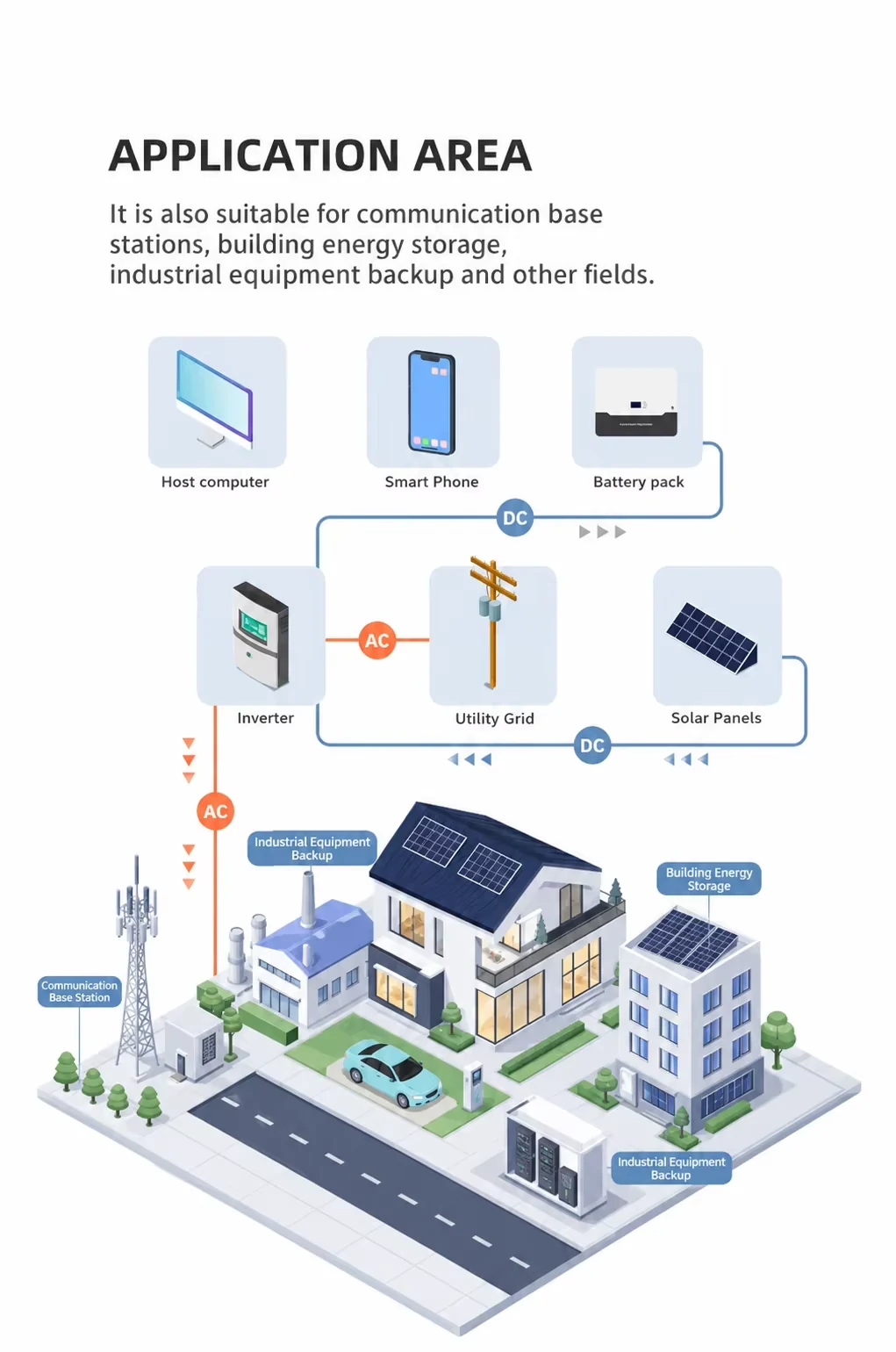

Application	Solar Energy Storage, Home Backup, Off-Grid Systems
Standard Charge Voltage	29.2 V
Discharge Cut-off Voltage	22.4 V
Max. Continuous Charge Current	200 A
Max. Continuous Discharge Current	200 A

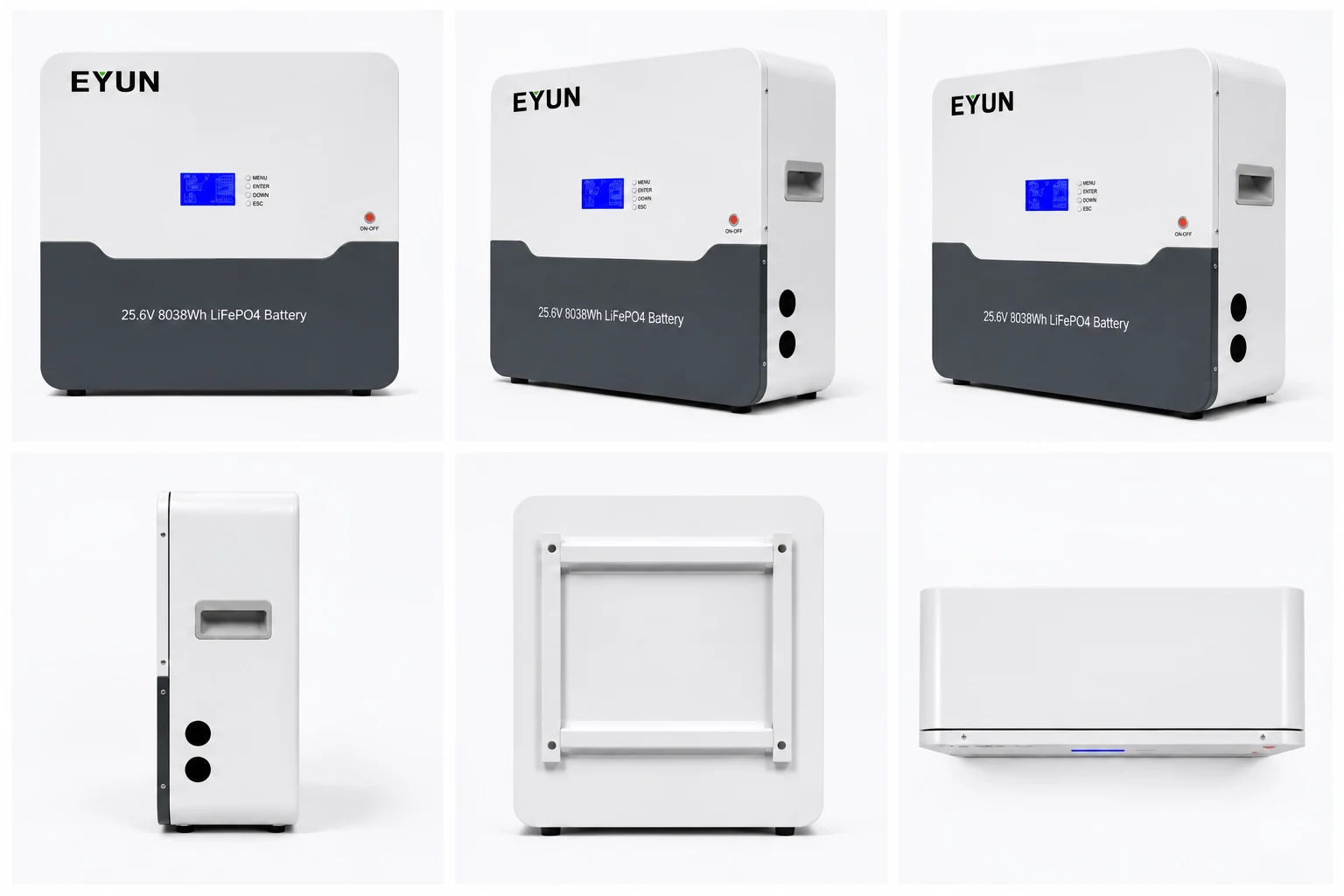

Dimensions (W × D × H)	460 × 635 × 132 mm
Weight	Approx. 52 kg
