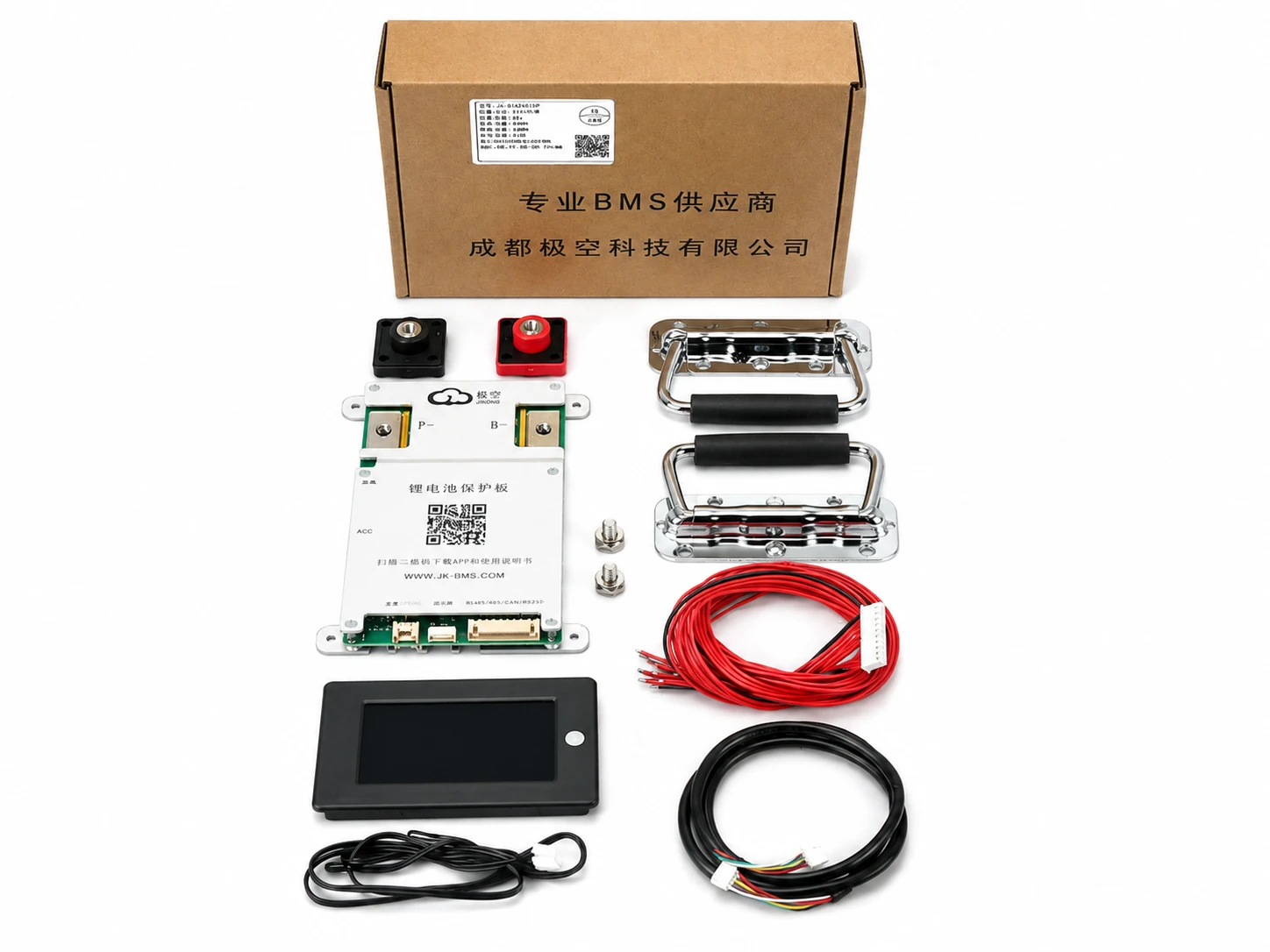

Products / EYUN 12.8V DIY LiFePO4 Battery Box Kit for 280Ah 300Ah 314Ah Cells with Smart Display and Optional JK BMS

MODEL · EYUN-DIY-12.8V-BATTERY-BOX

DIY Battery Enclosures

Factory-direct energy product

EYUN 12.8V DIY LiFePO4 Battery Box Kit for 280Ah 300Ah 314Ah Cells with Smart Display and Optional JK BMS

Name: EYUN 12.8V DIY LiFePO4 Battery Box Kit for 280Ah 300Ah 314Ah Cells with Smart Display and Optional JK BMS
Brand: EYUN
SKU: EYUN-DIY-12.8V-BATTERY-BOX

Modular stackable energy storage architecture presented in the EYUN electronic album.

CELL SUPPORT280 / 300 / 314Ah× 4

SMART DISPLAY3.2 Inch

BMS OPTIONSJK 100A / 200A

ENCLOSUREMetal Housing

Request Factory Quote View Specifications Submit Order

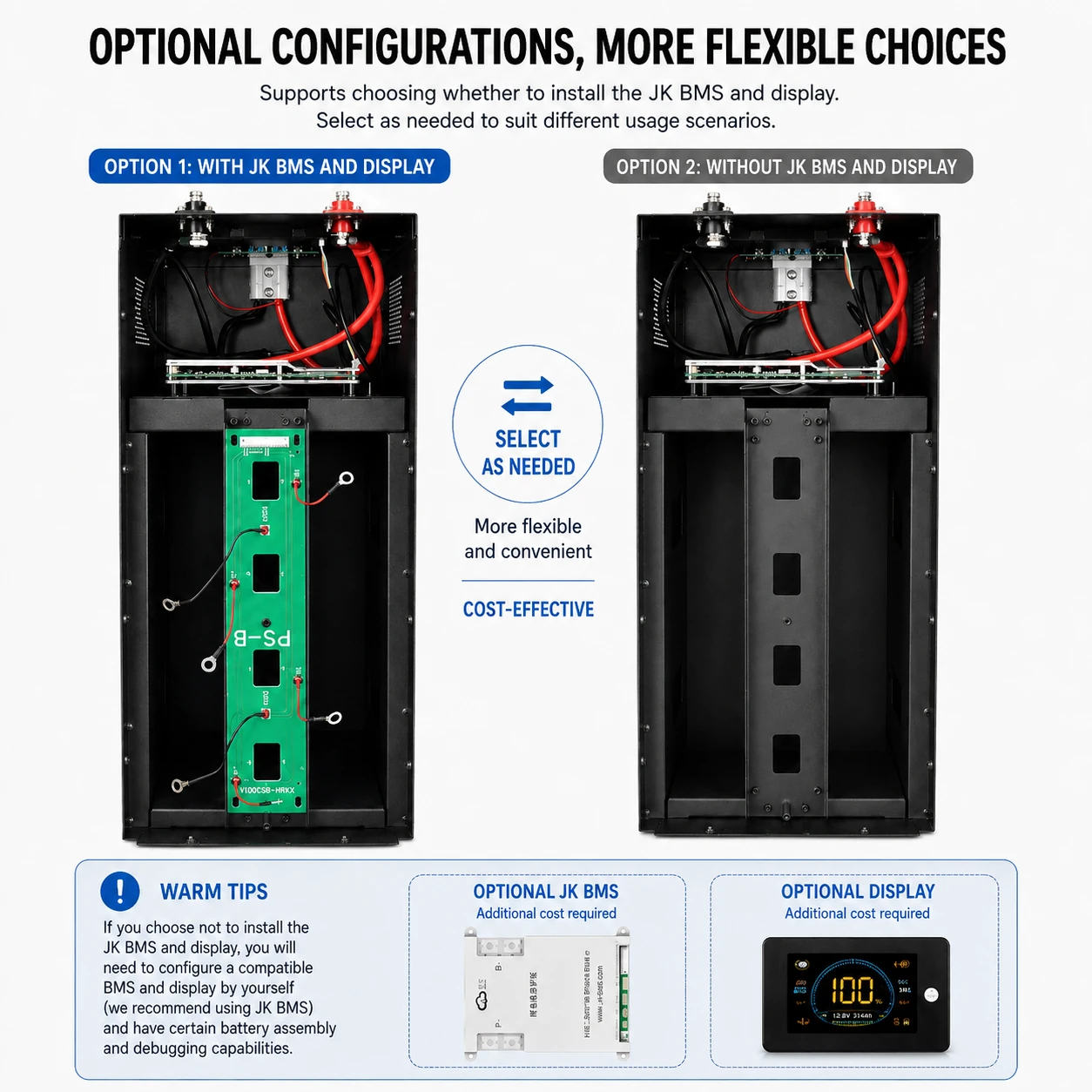

✓ BMS configurable✓ Enclosure configurable✓ Communication options

01 / Cell technology

Built around the cell.

For projects specifying new EVE A-grade LiFePO4 cells, final cell model and configuration are confirmed against the production order.

3.2VEVEA-GRADE CELL

EVE A-GRADE OPTION

Cell quality is the starting point of the battery.

EYUN can build the battery platform around the required voltage, capacity, enclosure and BMS architecture. The exact cell model, quantity and electrical configuration should be confirmed for each project.

Cell selectionProject-specific configuration

Cell groupingPack architecture & balance

Electrical connectionWelding / busbar preparation

TraceabilityProduction-stage QC

02 / Technical specifications

Technical specifications

Review the product parameters below. Contact our team to confirm your required configuration.

Specification	Value
Nominal Voltage	12.8 V
Rated Capacity	280 Ah
Chemistry	LiFePO4
Cell Option	Supports 3.2V 280Ah / 300Ah / 314Ah Cells
Configuration	DIY battery enclosure / project-specific BMS
Communication	Bluetooth / RS485 / UART, Depending on Selected BMS
Application	DIY Battery Assembly, Solar Storage, RV, Off-Grid Power

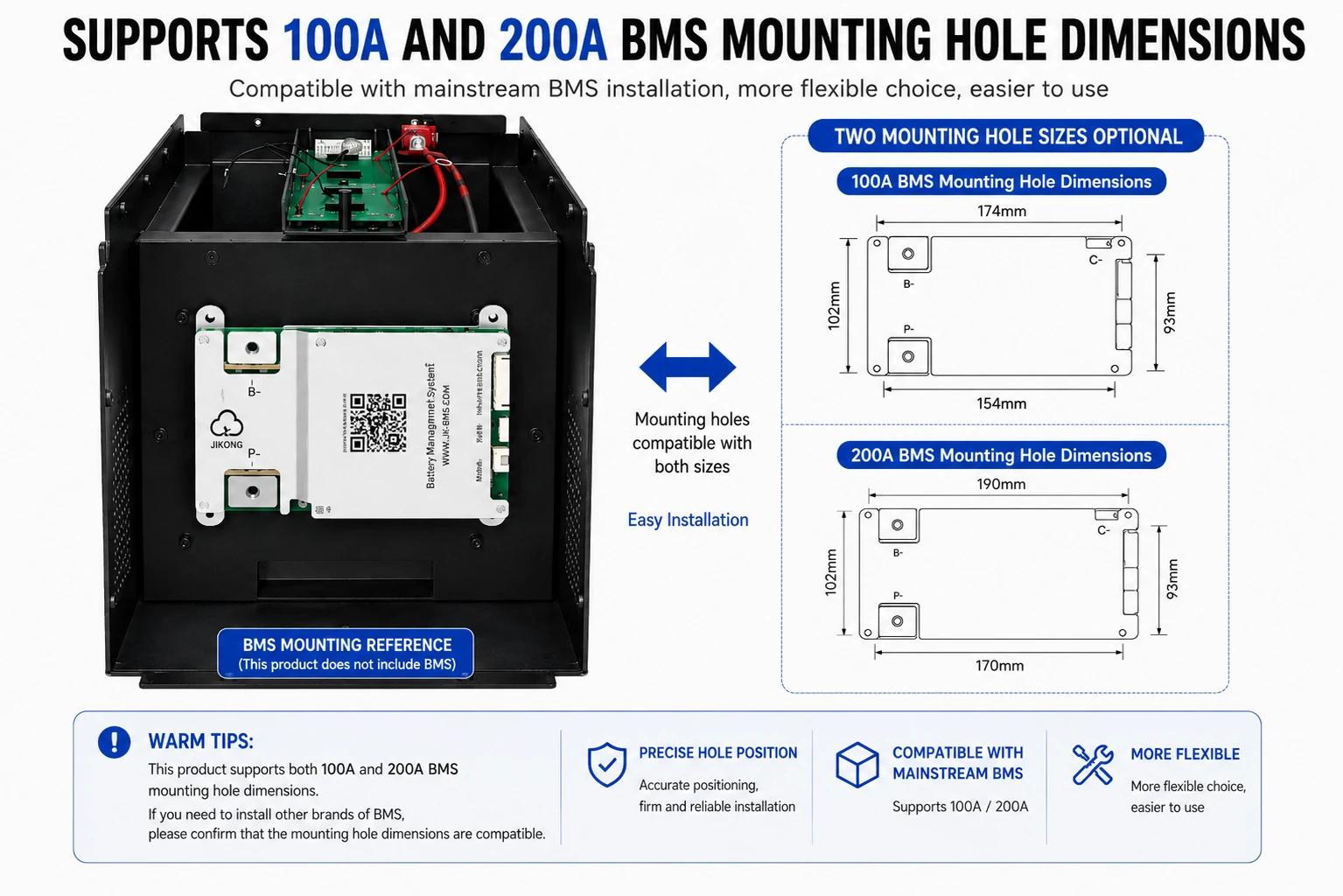

BMS	JK 100A / 200A BMS Optional
Product Type	DIY Battery Box Kit
Supported Cell Voltage	3.2 V per Cell
Supported Cell Quantity	4 Cells
Battery Configuration	4S1P
Display	3.2-Inch Smart Color Display
Enclosure Material	Metal
Dimensions (L × W × H)	460 × 202 × 253 mm

03 / BMS & control

Protection, monitoring and communication.

Configure the BMS architecture around the battery application, current requirement and system communication needs.

Over-current protectionCell balancingTemperature protectionBluetooth monitoringRS485 / protocol optionsInverter communication

Discuss BMS Configuration

BMSCONTROL CORE

CELL

INVERTER

APP

04 / Application scenarios

One battery platform, different energy jobs.

Connect this product with the application that matches your project. Final sizing should be based on load, runtime and installation requirements.

HOMEHome Power GenerationDiscuss application →INDUSTRIALIndustrial PowerDiscuss application →GOLFGolf CartDiscuss application →UPSData Center UPSDiscuss application →MARINEMarine / BoatDiscuss application →

05 / Factory process

From cell to finished battery.

A visual overview of the production sequence used to move a battery project from component preparation to finished-system delivery.

01Cell preparationInspection / grouping

02Compression & weldingPack structure / connection

03Wiring & BMSProtection / communication

04Assembly & QCInspection / testing

05Packing & shipmentExport-ready delivery

EYUN battery manufacturing and factory presentation

Manufacturing mindset

Production is part of the product.

For B2B projects, the factory process, configuration control and final inspection are as important as the battery specification itself.

See Factory

06 / OEM / ODM

Need a different voltage, capacity or enclosure?

Send the application, target voltage, capacity, quantity, inverter / communication requirements and destination. EYUN can turn the requirements into a project-specific battery configuration.

01 Requirement02 Configuration03 Sample04 Production

Start OEM / ODM Project

07 / Quote

Ready to discuss your project?

Tell us the quantity, application and destination. We will review the configuration with you.

Request a Factory Quote →
